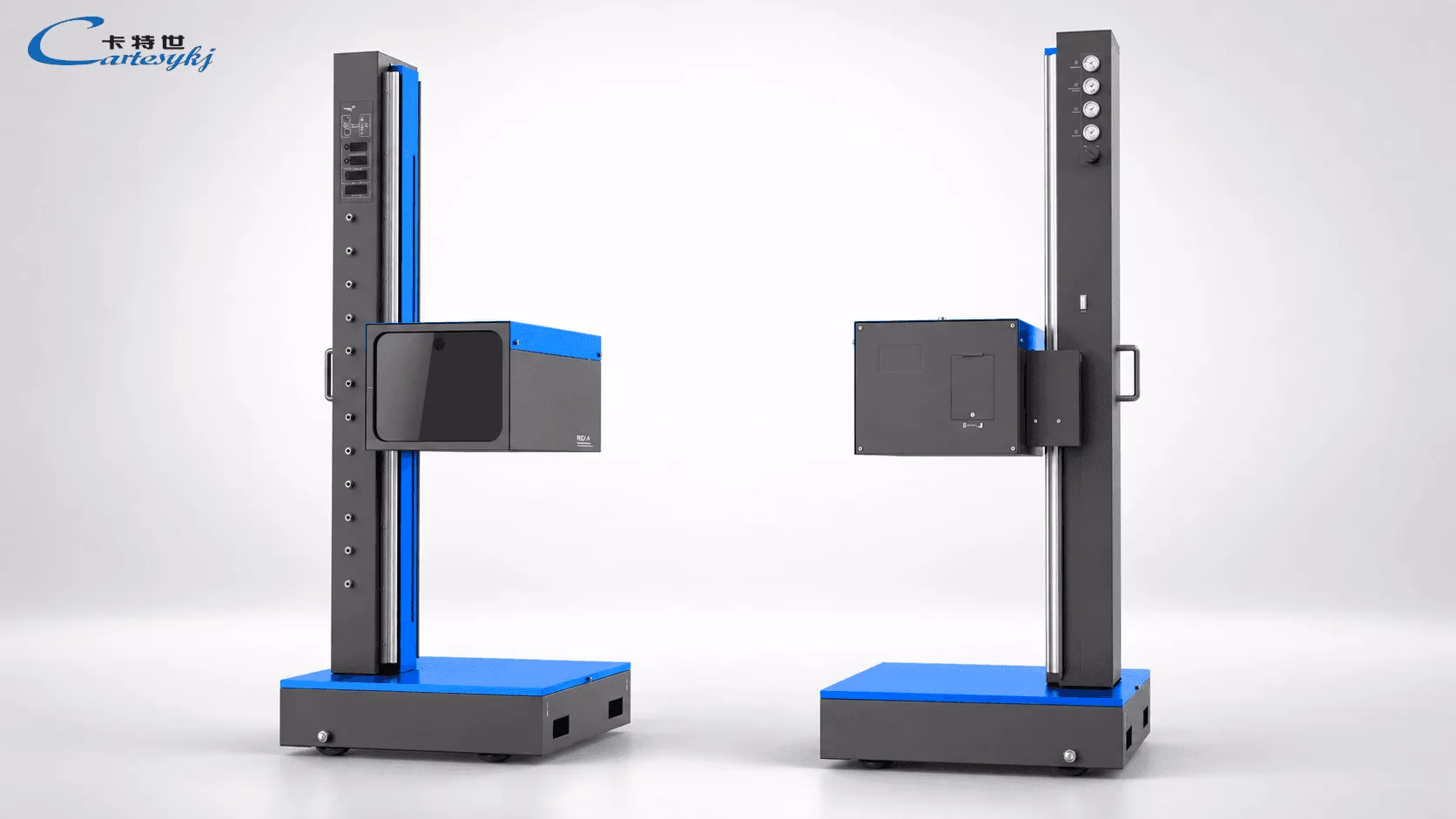

Headlight tester | MQD-6A/6B/6C/5A/1A/3C/3G

In commercial inspection lanes, fleet repair depots, and vehicle assembly facilities, incorrect headlamp alignment causes regulatory failures and serious nighttime driving hazards. Installing a dependable headlight beam tester eliminates diagnostic uncertainty by quantifying light projection values against established safety standards. This guide examines how modern testing instruments measure luminous intensity and optical axis deviation to keep inspection operations efficient, safe, and fully compliant.

Mandatory vehicle safety programs require precise evaluation of forward vehicle illumination. Using a certified headlight beam tester allows test lane operators and maintenance personnel to verify that vehicle illumination satisfies national safety parameters without blinding oncoming traffic. The following sections outline core operating mechanisms, classification categories, engineering selection criteria, and quality standards for commercial procurement.

Table of Contents

• 1. Verified Equipment Definition and Material/Application Scope
• 2. Buyer Value and Sourcing Considerations Supported by Supplied Facts
• 3. Verified Technology Trends and Classifications of Headlight Beam Tester Systems
• 4. Documented Materials, Quality Controls, Certifications, and Components
• 5. Practical Sourcing and Risk-Mitigation Guidance for a Headlight Beam Tester
• Frequently Asked Questions
• Conclusion

1. Verified Equipment Definition and Material/Application Scope

A headlight beam tester is a specialized optoelectronic metrology instrument engineered to evaluate the luminous intensity and optical axis deviation of motor vehicle headlamps. Falling within the category of Vehicle Headlight Testing Equipment, the system examines both low-beam and high-beam configurations to verify optical performance under standardized testing conditions.

The measurement process focuses on two essential diagnostic metrics: the maximum luminous intensity of the high beam and the precise angular offset (horizontal and vertical deviation) of the beam cutoff line. By positioning the optical acquisition box at a defined distance before the headlamp, the instrument captures emitted light rays and converts optical patterns into quantifiable diagnostic values.

Verified technical protocols indicate that this diagnostic apparatus fulfills the operational criteria detailed in official Chinese vehicle safety standards: GB 7258 ("Technical Specifications for Safety of Power-driven Vehicles Operating on Roads") and GB 38900 ("Items and Methods for Safety Inspection of Motor Vehicles"). These standards dictate threshold requirements for beam orientation and luminous intensity during roadworthiness evaluations.

The operational scope of this Vehicle Headlight Teste covers diverse facilities across the commercial transportation and automotive manufacturing sectors:

• Vehicle Safety Inspection Stations: Integrated into automated, networked inspection lines to perform continuous periodic technical inspections (PTI).
• Automotive Manufacturing Plants: Deployed in end-of-line (EOL) testing areas to confirm proper optical aim and luminous power prior to vehicle delivery.
• Automotive Maintenance and Repair Workshops: Utilized by service departments for post-collision repair alignment, headlamp bulb replacement, and periodic maintenance checks.
• Mobile Inspection Units: Transported on mobile test platforms to execute roadside enforcement checks and remote fleet audits.

2. Buyer Value and Sourcing Considerations Supported by Supplied Facts

Procuring a rugged headlight beam tester requires balancing equipment acquisition costs against throughput requirements and test bay uptime. In high-volume inspection environments, unexpected testing downtime creates immediate operational bottlenecks, leading to customer delays and lost inspection revenue. Operations managers must select equipment suited to their specific workflow volumes.

Commercial testing facilities generally evaluate two deployment configurations: high-throughput networked line units and standalone workshop testing apparatus. Facilities dedicated to continuous vehicle throughput require fast automated target finding, rapid data transmission, and structural resilience. In contrast, smaller repair bays often prioritize portability, rapid manual positioning, and straightforward operator interfaces.

Operational Parameter

Networked Inspection Line Model

Mobile / Workshop Diagnostic Model

Underlying Detection Principle

Digital image processing (CCD / CMOS sensor array)

Photoelectric conversion or digital optical sensors

Target Throughput Volume

Continuous high-capacity multi-lane testing

On-demand maintenance and batch servicing

Network Integration Level

Direct communication with lane host computer

Standalone digital screen or portable interface

Primary Application Scope

Vehicle inspection stations, automotive assembly plants

Maintenance garages, mobile roadside inspection

Primary Measured Values

Luminous intensity and optical axis deviation

Luminous intensity and optical axis deviation

Core Regulatory Compliance

GB 7258, GB 38900

GB 7258, GB 38900

Network integration capabilities represent an essential purchasing consideration. Modern vehicle inspection lanes rely on centralized host systems to record and validate test results automatically. A modern headlight beam tester fitted with standard industrial communication ports transmits measured optical axis coordinates and luminous intensity directly to the station database, preventing manual transcription errors and ensuring data integrity.

Operating costs (Opex) are governed by sensor stability, rail mechanism durability, and routine optical calibration overhead. Sourcing a dependable headlight beam tester built with solid mechanical guideways minimizes maintenance interruptions and preserves optical alignment accuracy throughout multi-shift operational schedules.

3. Verified Technology Trends and Classifications of Headlight Beam Tester Systems

Within modern vehicle testing facilities, commercial instruments are categorized according to their internal optical detection architecture: photoelectric conversion units and digital image processing units. Each system architecture serves distinct testing requirements across the automotive inspection industry.

Photoelectric Conversion Systems

Photoelectric conversion equipment utilizes silicon photocell arrays and optical lenses to evaluate the luminous intensity and axis deviation of motor vehicle headlamps. Light emitted from the vehicle headlamp enters the optical receiver box, passing through a specialized optical lens onto light-sensitive photovoltaic cells.

These light sensors generate electrical signals directly proportional to the received light intensity. Built-in electronic circuits analyze signal differentials across quadrant cell arrangements to determine the center of the beam. A headlight beam tester based on photoelectric conversion delivers stable, dependable diagnostics for vehicle repair workshops and mobile vehicle testing stations.

Digital Image Processing Systems

Digital image processing systems incorporate digital cameras (CCD or CMOS imaging sensors) combined with real-time digital image processing algorithms. Instead of relying on localized photocell sensors, the instrument captures complete optical projections displayed against an internal diffusion screen.

Sophisticated image processing software identifies the position of the light-dark cutoff line, calculates inflection points, and records the maximum luminous intensity coordinates. This advanced system accommodates modern headlamp designs, such as halogen, xenon, and multi-element LED lighting arrays, providing reliable automatic beam tracking.

A digital image processing headlight beam tester is specifically engineered for networked vehicle safety inspection lines and automotive manufacturing plants where high-speed automated evaluation under GB 7258 and GB 38900 protocols is required.

4. Documented Materials, Quality Controls, Certifications, and Components

Automotive inspection lanes subject testing equipment to continuous mechanical movement, ambient floor vibrations, and shop dust. To maintain measurement consistency, a quality headlight beam tester is constructed with robust mechanical sub-assemblies and protected optical chambers.

Core structural and electronic components include:

• Optical Receiver Housing: An enclosed metal or reinforced polymer enclosure housing the objective lens, internal projection screen, and optical sensors, protected against ambient environmental glare.
• Vertical Guidance Column: A precision-machined vertical column that supports smooth vertical positioning of the optical box via counterbalanced mechanisms.
• Base Chassis and Rail Assemblies: A sturdy rolling base with precision tracking wheels or ground-anchored rails, ensuring perpendicular alignment relative to the vehicle test lane.
• Digital Interface Electronics: Signal acquisition boards that process sensor output and output data via industrial communication interfaces to inspection line hosts.

Adherence to GB 7258 and GB 38900 provides the formal compliance foundation for this diagnostic equipment. These regulatory standards define strict tolerances for photometric assessment, requiring traceable measurement of high-beam luminous intensity and low-beam cutoff pitch.

Quality control protocols mandate regular sensor calibration against calibrated light sources. Technicians regularly clean the primary objective lens, inspect mechanical column perpendicularity, and verify software aim points using certified reference sources to ensure long-term measurement repeatability across continuous testing cycles.

5. Practical Sourcing and Risk-Mitigation Guidance for a Headlight Beam Tester

Procuring industrial diagnostic equipment for commercial vehicle testing requires a structured risk-mitigation framework. Sourcing managers should follow a practical evaluation sequence before finalizing equipment procurement contracts.

• Confirm Inspection Protocol Requirements: Verify that the equipment firmware natively supports the calculation criteria and pass/fail thresholds defined in GB 7258 and GB 38900.
• Select the Sensor Technology: Match the technology type to your operational environment—select digital image processing for automated inspection lanes or photoelectric conversion for dedicated maintenance bays.
• Evaluate Software and Interface Compatibility: Confirm that the headlight beam tester can interface seamlessly with local inspection lane host software through standard serial or Ethernet connections.
• Review Physical Installation Conditions: Assess floor flatness, ground rail installation needs, and vehicle positioning clearances to avoid costly bay modifications.
• Verify Supplier Technical Support: Confirm the availability of optical calibration procedures, spare parts, and optical alignment tools to maintain device accuracy over its operational life.

Implementing a rigorous pre-shipment inspection checklist ensures that optical tracking systems, guideways, and communication interfaces operate correctly before full site deployment.

Frequently Asked Questions

What primary parameters does a headlight beam tester evaluate?

A headlight beam tester measures two primary parameters: the maximum luminous intensity of the vehicle headlamp (measured in candela) and the optical axis deviation (horizontal and vertical deflection angles) relative to the vehicle geometric axis.

How does photoelectric conversion differ from digital image processing?

Photoelectric conversion uses light-sensitive silicon diodes to evaluate light intensity and estimate beam alignment. Digital image processing uses high-resolution digital cameras to capture the entire beam projection, utilizing computational algorithms to locate cutoff lines and inflection points across complex LED, HID, and halogen assemblies.

Which standards govern this testing equipment?

In standard vehicle safety inspections, equipment must satisfy the technical performance mandates of GB 7258 ("Technical Specifications for Safety of Power-driven Vehicles Operating on Roads") and GB 38900 ("Items and Methods for Safety Inspection of Motor Vehicles").

Can a headlight beam tester connect to automated inspection lane computers?

Yes. Instruments utilizing digital image processing are specifically built for networked online testing, allowing automated data communication with vehicle inspection line host computers.

Where are vehicle headlight testers typically installed?

They are installed in periodic motor vehicle safety inspection stations, automotive assembly plants for factory delivery checks, commercial maintenance and repair garages, and mobile roadside inspection units.

Conclusion

Selecting the right headlight beam tester is vital for meeting rigorous vehicle safety criteria, improving inspection efficiency, and maintaining full regulatory compliance. Whether you operate a high-volume testing station requiring networked digital image processing or a dedicated repair bay utilizing photoelectric conversion, ensuring equipment alignment with GB 7258 and GB 38900 standards guarantees dependable diagnostic outcomes.

Contact our technical engineering team today to review your testing requirements, explore hardware configurations, or request an engineering consultation for your inspection facility.
