Vehicle sideslip tester | CTCH-3/CTCH-10/CTCH-15

A high-throughput vehicle inspection station faces significant operational bottlenecks and diagnostic errors when dynamic test benches fail to detect irregular steering scrub. The Side Slip Tester is an indispensable primary screening device on modern testing lanes, designed to measure dynamic lateral displacement caused by improper wheel alignment as vehicles cross a floating platform. Manufactured by Cartesykj, the CTCH series—including the CTCH-3, CTCH-10, and CTCH-15—delivers robust maximum permitted axle load ratings from 3,000 kg up to 15,000 kg for passenger car, commercial vehicle, and heavy freight inspection lanes.

Table of Contents

• 1. Equipment Definition and Material Scope for Side Slip Tester Units
• 2. Buyer Value and Sourcing Considerations Supported by Supplied Facts
• 3. Technology Trends and Mechanical Side Slip Tester Classifications
• 4. Documented Materials, Quality Controls, and Side Slip Tester Components
• 5. Practical Sourcing and Risk-Mitigation Guidance for Every Side Slip Tester
• Frequently Asked Questions About the Side Slip Tester
• Engineering Consultation and Side Slip Tester Inquiries

1. Equipment Definition and Material Scope for Side Slip Tester Units

An automotive side slip tester is specialized vehicle safety inspection equipment engineered to detect the lateral wheel movement of steered axles. When an automobile or transport truck rolls across the measurement area, the combined geometrical forces of camber and toe angle can create lateral scrub. If wheel toe does not properly counter the camber thrust, the tire exerts horizontal force against the driving surface.

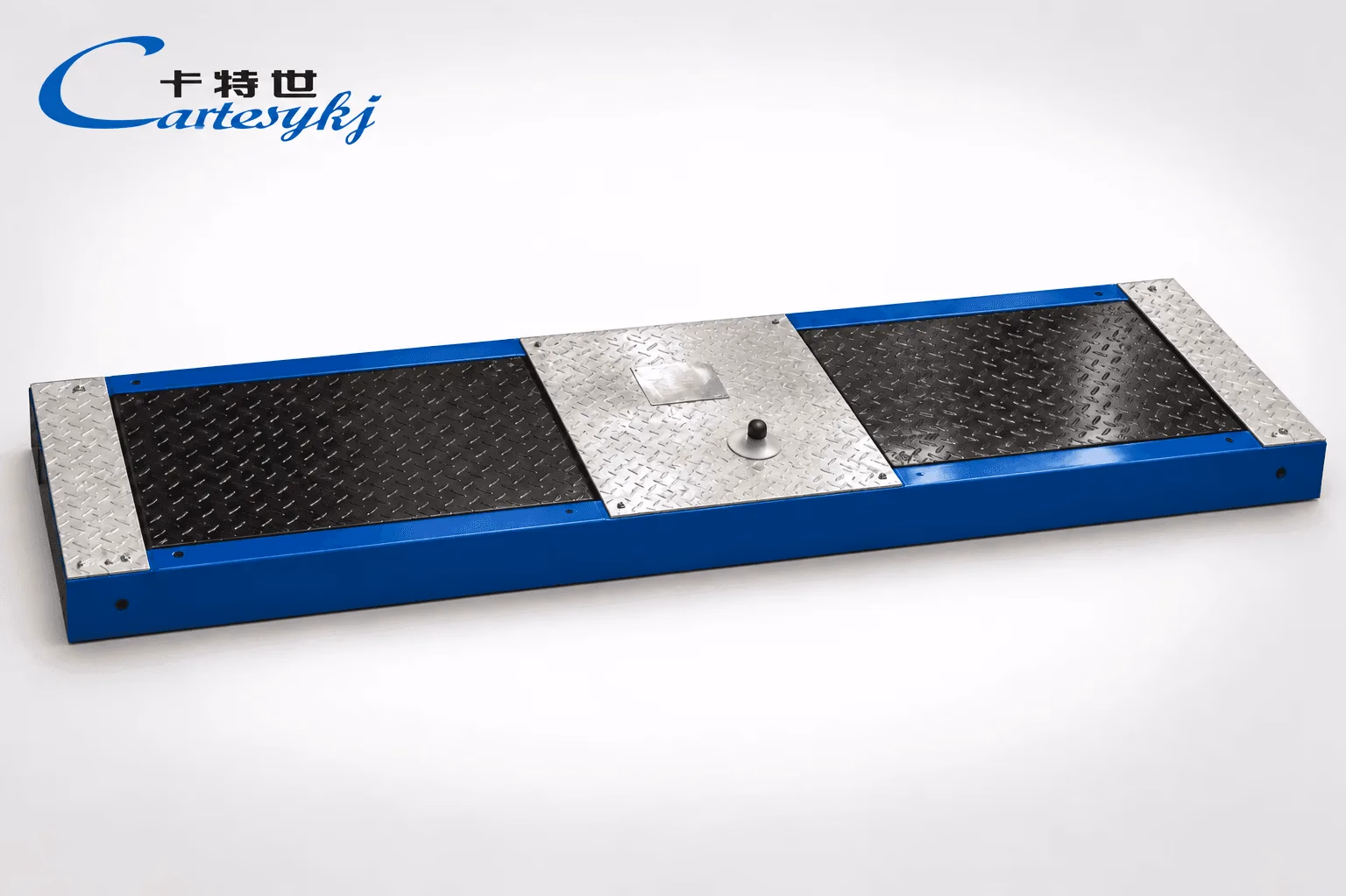

The Cartesykj side slip test bench records this mechanical reaction by allowing an integrated sliding plate to move laterally as front wheels pass straight across the platform. The vehicle sideslip testing equipment tracks both the linear magnitude and the inward or outward direction of plate displacement. The resulting vehicle side slip measurement, calibrated to a measuring range of ±15 m/km across all CTCH models, reflects rolling lateral tire drift under real-world axle loading.

Core Testing Functions

Within an automated vehicle inspection line, the automotive side slip tester provides foundational pass-or-fail dynamic screening. Standard operational functions include:

• Vehicle wheel side slip measurement during continuous rolling drive-over
• Precise lateral wheel movement detection across steered axles
• Side slip direction measurement to determine inboard or outboard tire scrub
• Dedicated vehicle front wheel side slip inspection
• Preliminary wheel alignment checking prior to detailed geometry service
• Standardized dynamic checks for vehicle safety inspection equipment stations

Application Scope Across Fleets

The Cartesykj vehicle sideslip testing system accommodates varied vehicle categories depending on axle rating, sliding plate dimensions, and platform track width:

• Passenger Car Testing Facilities: Utilizes the CTCH-3 automotive side slip tester to inspect passenger cars, sport utility vehicles, and light vans with axle loads up to 3,000 kg and wheel tread widths from 700 mm to 2,400 mm.
• Commercial Fleet Centers: Uses the CTCH-10 commercial vehicle side slip tester for medium trucks, buses, and municipal fleets requiring up to 10,000 kg maximum permitted axle load support and tread widths spanning 700 mm to 2,700 mm.
• Heavy Transport Inspection Lines: Implements the CTCH-15 heavy vehicle side slip tester for multi-axle freight carriers and heavy logistics units requiring up to 15,000 kg axle load capacity and wheel tread widths up to 2,900 mm.

2. Buyer Value and Sourcing Considerations Supported by Supplied Facts

Procuring a dependable side slip tester requires balancing vehicle throughput, mechanical chassis durability, and pit footprint requirements. Sourcing teams must evaluate how each automotive side slip tester model aligns with regional fleet demographics.

Model

Max Permitted Axle Load (kg)

Wheel Tread Range (Inner / Outer mm)

Sliding Plate Dimensions (mm)

Overall Dimensions (L × W × H mm)

Side Slip Measurement Range

CTCH-3

3,000

700 / 2,400

500 × 850

2,700 × 660 × 200

±15 m/km

CTCH-10

10,000

700 / 2,700

1,000 × 1,000

3,000 × 1,420 × 180

±15 m/km

CTCH-15

15,000

700 / 2,900

1,000 × 1,100

3,000 × 1,420 × 180

±15 m/km

Distinction: Side Slip Tester vs. Wheel Alignment Equipment

A critical engineering boundary exists between an operational side slip tester and a dedicated static four-wheel alignment bench. An automotive side slip tester measures the dynamic net lateral scrub resulting from combined camber and toe angle forces as the tire rolls across a free-floating side slip testing plate. It functions as an effective preliminary vehicle wheel alignment inspection tool to flag steer axle anomalies quickly.

However, an industrial side slip tester cannot isolate or directly report individual caster angles, kingpin inclination, isolated camber degrees, or specific tie-rod adjustments. Inspection station planners must position the vehicle side slip measurement platform as a high-speed triage station that directs defective vehicles to off-line alignment workshops for adjustment.

Axle Ratings and Civil Pit Integration

Choosing between the CTCH-3, CTCH-10, and CTCH-15 determines civil excavation parameters. While the light-duty CTCH-3 features an overall frame height of 200 mm and a width of 660 mm, the commercial-grade CTCH-10 and CTCH-15 utilize an overall height of 180 mm and a wider platform width of 1,420 mm. Sourcing managers must prevent line mismatches: selecting a light-duty unit for mixed commercial lines risks structural failure, while deploying a heavy vehicle side slip tester on a light-only bay increases pit excavation expenditures.

3. Technology Trends and Mechanical Side Slip Tester Classifications

Inspection stations require mechanical plate kinematics that comply with local vehicle safety inspection equipment regulations. Cartesykj manufactures three distinct mechanical structural configurations for each side slip tester.

Linked Double Plate Side Slip Tester Configuration

In this optional configuration, the left and right sliding plates are mechanically linked beneath the vehicle driving track. As both front wheels cross the platform simultaneously, the linked plates deflect together. Cartesykj documentation specifies a synchronization error of less than 0.04 mm for this linked double plate side slip tester, ensuring synchronized plate kinematics across high-volume periodic inspection lines.

Independent Double Plate Side Slip Tester Configuration

An alternative build separates the dual plates mechanically. Under an independent double plate side slip tester configuration, each wheel plate deflects on its own dedicated roller set. This configuration enables vehicle inspection station equipment operators to measure lateral tire movement on the left and right wheels independently, revealing asymmetric geometry issues.

Single Plate Side Slip Tester Configuration

For budget-sensitive or space-restricted inspection bays, a single plate side slip tester layout is available. In this arrangement, one steered wheel crosses an active floating plate while the opposite wheel rolls over a stationary reference surface, fulfilling basic vehicle wheel side slip compliance checking.

Platform Configuration

Mechanical Linkage

Kinematic Operation

Primary Operational Role

Linked Double Plate Side Slip Tester

Synchronized mechanical linkage (< 0.04 mm error)

Dual plates displace simultaneously to record combined steer axle side slip

High-speed periodic motor vehicle testing lanes

Independent Double Plate Side Slip Tester

Decoupled dual sliding plates

Measures left and right tire scrub values separately

Detailed automotive diagnostic and fleet maintenance bays

Single Plate Side Slip Tester

Single floating plate with static counterplate

Compact footprint measuring one wheel track per axle passage

Space-constrained workshops and compact inspection pits

4. Documented Materials, Quality Controls, and Side Slip Tester Components

Continuous vehicle passage exposes a side slip tester to intense downward wheel loads and sharp lateral forces. Cartesykj builds the CTCH series with specialized mechanical protections to preserve measuring accuracy over high duty cycles.

High-Strength Integrated Structure

Each chassis utilizes a high-strength integrated structure engineered for vehicle inspection line equipment bays. This rigid framework eliminates frame deflection under maximum permitted axle loads up to 15,000 kg on the CTCH-15. Preventing chassis deformation ensures that lateral wheel forces transfer purely to the internal displacement sensing mechanism.

Dust-Resistant Design

Inspection pits accumulate gravel, dust, tire debris, and water brought in by vehicle tires. The integrated structure features a dust-resistant design that encloses internal roller tracks and mechanical links. This barrier prevents abrasive grit from impeding free horizontal plate movement, minimizing unexpected downtime and frequent pit cleaning.

High-Precision Rollers with Low Initial Sliding Resistance

Precise vehicle side slip measurement requires free plate mobility. Cartesykj incorporates high-precision rollers that provide exceptionally low initial sliding resistance. When a vehicle tire displays minimal camber or toe angle imbalance, the floating platform responds instantly without mechanical stick-slip friction, preserving measurement accuracy across the full ±15 m/km measurement span.

Optional Quick Reset Device

Commercial transport fleets often operate multi-axle configurations, including dual steering front axles. On standard platforms, the sliding plate may remain displaced after the first steer axle exits, affecting the measurement of the second axle. Cartesykj provides an optional quick reset device that rapidly re-centers the plate to zero datum between consecutive axles, supporting commercial vehicle side slip tester lines.

Control Hardware Options

To integrate smoothly with vehicle inspection center systems, Cartesykj offers flexible electronic architectures for any side slip tester:

• Instrument Control: A standalone display console suited for independent workshops and manual testing lanes.
• Industrial Cabinet Control: An industrial cabinet unit designed for networked inspection systems, transmitting sideslip data directly to lane software alongside brake and suspension testers.

5. Practical Sourcing and Risk-Mitigation Guidance for Every Side Slip Tester

Procurement specialists acquiring vehicle sideslip testing equipment for municipal or private testing facilities should review several systematic factors to safeguard project ROI.

Procurement Evaluation Checklist

• Verify Maximum Permitted Axle Load: Confirm peak fleet axle weights. The CTCH-3 (3,000 kg) matches passenger cars, while mixed commercial routes require the CTCH-10 (10,000 kg) or CTCH-15 (15,000 kg).
• Validate Wheel Tread Envelopes: Review tire track widths across incoming fleets. The CTCH-15 supports outer tread widths up to 2,900 mm, accommodating heavy commercial vehicles that overhang smaller frames.
• Identify Multi-Steer Fleet Requirements: If testing commercial transport with tandem front axles, specify the optional quick reset device on your side slip test bench order.
• Select Plate Configuration: Determine whether regional inspection mandates specify a linked double plate side slip tester, an independent double plate layout, or a single plate side slip tester.
• Review Civil Pit Footprints: Ensure foundation pit drawings reflect correct dimensions: 2,700 × 660 × 200 mm for CTCH-3, or 3,000 × 1,420 × 180 mm for CTCH-10 and CTCH-15 units.

Lifecycle Cost and Maintenance Considerations

The total operating cost of an automotive side slip tester depends largely on durability and maintenance frequency. Platforms lacking dust-resistant enclosures often suffer premature roller wear and calibration drift caused by particulate buildup. By choosing a side slip tester manufacturer like Cartesykj that utilizes sealed integrated frames and high-precision guide rollers, operators minimize unscheduled maintenance and preserve dependable operational throughput.

Frequently Asked Questions About the Side Slip Tester

What is a side slip tester?

A side slip tester is vehicle safety inspection equipment designed to measure dynamic lateral wheel movement caused by combined wheel camber and toe angles as a vehicle rolls across a sliding plate. It identifies dynamic wheel scrub in vehicle inspection stations.

How does a vehicle side slip tester work?

When a vehicle drives straight across the side slip tester platform, uncorrected lateral forces from camber and toe misalignment cause the floating sliding plate to displace sideways. The equipment measures the displacement distance and direction within a ±15 m/km range.

What causes vehicle wheel side slip?

Vehicle wheel side slip is caused by the combined interaction of wheel camber and toe angles. When camber thrust is not correctly balanced by toe alignment, rolling tires generate lateral scrub forces that push against the driving surface.

What is the measurement range of Cartesykj side slip testers?

All Cartesykj CTCH models—including the CTCH-3, CTCH-10, and CTCH-15—feature a standardized side slip measurement range of ±15 m/km.

Can a side slip tester replace a four-wheel alignment machine?

No. A side slip tester measures net dynamic lateral wheel movement during vehicle transit. It does not measure isolated individual caster, camber, or toe angles, serving instead as a high-throughput preliminary screening instrument before detailed wheel alignment inspection.

What is the difference between single-plate and double-plate side slip testers?

A single plate side slip tester measures lateral deflection on one wheel while the opposing tire crosses a fixed plate. Double-plate testers measure both wheels, available in an independent floating layout or an optional linked double-plate configuration with synchronization error below 0.04 mm.

Engineering Consultation and Side Slip Tester Inquiries

Choosing an appropriate Side Slip Tester ensures that automotive testing facilities deliver reliable lateral scrub detection while maintaining lane throughput. Whether planning a light-duty passenger vehicle line around the CTCH-3 or equipping a heavy commercial transport facility with the CTCH-10 or CTCH-15, selecting the right axle capacity, plate design, and control cabinet ensures long-term operational success. Contact the Cartesykj technical team to request detailed civil engineering layout drawings, complete technical specifications, or a tailored quotation for your vehicle inspection line project.
