Automatic Vehicle Steering Angle Tester | CTZJ-13-2

Inaccurate steering geometry creates immediate liabilities for commercial transit fleets, vehicle test centers, and automotive assembly facilities. Misaligned front-end angles cause rapid tire scrubbing, steering drift, and unpredictable handling during dynamic maneuvers. Investing in a heavy-duty Steering Angle Tester allows testing facilities to resolve these critical failure risks by quantifying exact wheel rotation limits under realistic axle loads rather than relying on unloaded approximations.

Contents

• 1. Verified Steering Angle Tester Definition and Equipment Scope
• 2. Buyer Value and Operational Sourcing Considerations
• 3. Mechanical Engineering and Steering Angle Tester Operation
• 4. Technical Specifications and Foundation Engineering Guidelines
• 5. Procurement Risk Mitigation and Inspection Protocols
• Frequently Asked Questions
• Conclusion: Implementing a Reliable Steering Angle Tester

1. Verified Steering Angle Tester Definition and Equipment Scope

An automated Steering Angle Tester is a specialized floor-mounted metrology bench engineered to evaluate the left and right turning angles of vehicle steering wheels. By measuring the maximum rotational displacement of steerable axles under true vehicle weight, the equipment exposes critical mechanical linkage wear, improper tie-rod settings, power steering gear travel limitations, and suspension misalignment before vehicles enter public roadways.

Within high-throughput vehicle lanes, this machine functions as a crucial Vehicle Performance Tester embedded in an integrated Comprehensive Vehicle Performance Inspection Line. Rather than operating in total isolation, the test bench is specifically designed to interact alongside auxiliary workshop tools, such as an electronic steering wheel force gauge and a computerized wheel alignment tester, enabling complete dynamic steering evaluations.

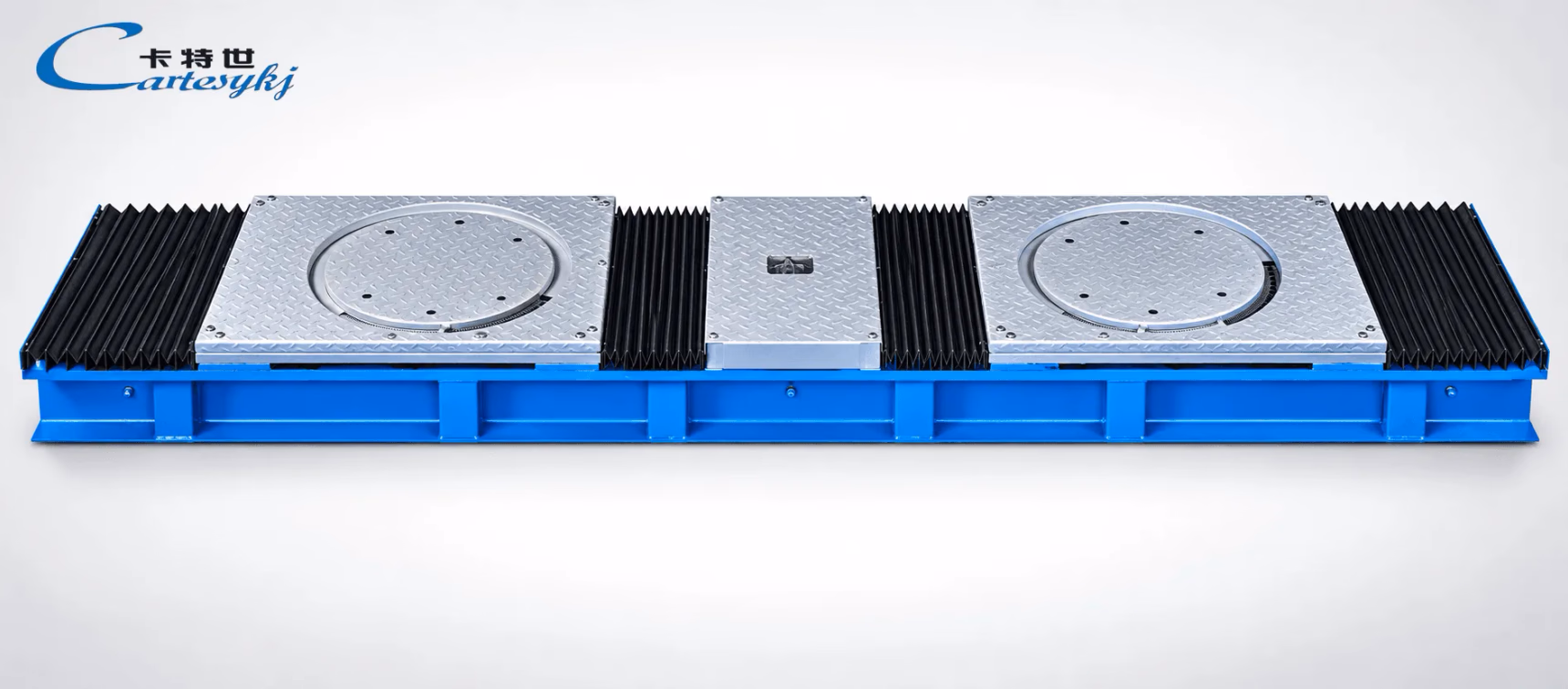

The core structural design of this Steering Angle Tester features an integrated main frame and dual motorized measuring disc assemblies. Both measuring platters execute precise lateral movements driven by a dedicated electric motor and reduction gearbox. This adjustable track structure allows testing lanes to seamlessly accommodate wide variations in vehicle track widths across diverse commercial fleets.

The material and application scope encompasses three key sectors: vehicle assembly facilities conducting high-volume end-of-line quality control, commercial repair and maintenance workshops overhauling heavy steering gears, and statutory automotive testing and supervision authorities enforcing strict roadworthiness standards. Selecting equipment developed by an established Automotive Inspection Station Equipment Supplier ensures full operational compatibility across these demanding inspection environments.

2. Buyer Value and Operational Sourcing Considerations

Facility directors and procurement teams managing automated test lanes must balance initial capital expenditure with operational throughput, structural durability, and operator safety. Utilizing a high-capacity Steering Angle Tester eliminates manual turntable handling, reduces lane cycle duration, and removes subjective visual errors from vehicle compliance audits.

Traditional manual turning plates require technicians to manually position discs, visually align tire tread centerlines, and record readings off etched metal plates. Conversely, modern Vehicle Steering Angle Testing automated through a motorized Steering Angle Tester uses automated disc alignment, clear digital character displays, standalone ticket printing, and centralized computer networking interfaces to boost lane efficiency.

Operational Criteria

Manual Turntable Method

Automated Steering Angle Tester (CTZJ-13-2)

Wheel Track Adjustment

Manual physical shifting by lane technician

Motor-reducer powered automatic positioning (1,100–2,300 mm)

Maximum Axle Load Rating

Typically limited to light commercial loads

13,000 kg continuous allowable axle load

Measurement Range & Display

Manual visual scale reading; manual logs

Dual-direction 0–50° with digital instrument character output

Facility Drive-Over Protection

Risk of turntable damage from non-testing traffic

Pneumatic clamping locks plates to withstand heavy roll-over

A major risk for testing stations is platform damage caused by heavy vehicles rolling across delicate turntables when not being tested. The CTZJ-13-2 Steering Angle Tester addresses this by using automatic zero-return mechanisms and pneumatic clamping cylinders. These features securely lock the floating plates into rigid drive-over structures, ensuring non-testing commercial vehicles traverse the platform without causing mechanical distortion.

3. Mechanical Engineering and Steering Angle Tester Operation

Understanding the internal kinematics of a modern Steering Angle Tester is vital for plant engineers. The test bench comprises a robust structural base frame housing two lateral measuring disc assemblies. These assemblies slide along precision internal tracks powered by an electric motor and mechanical reducer, allowing the platters to dynamically adjust to match incoming vehicle wheel tracks.

Each measuring platter utilizes a specialized two-tier mechanical architecture consisting of an upper floating body and a lower fixed body. High-load spherical rolling elements are positioned between these components, enabling the upper floating body to execute planar compound motion. This allows simultaneous rotation and longitudinal-lateral displacement during active steering input.

During automated Vehicle Steering Angle Testing, this compound motion replicates the natural rolling friction and lateral scrub of a rubber tire turning across an asphalt surface. By permitting natural lateral compliance, the Steering Angle Tester prevents unnatural tire binding, ensuring that the angular rotation of the floating disc matches the true geometric turning angle of the steered wheel.

The integrated pneumatic system includes heavy-duty locking cylinders. During entry and exit phases, the cylinders clamp the floating body firmly against the fixed base. Once the vehicle is centered, the pneumatic cylinders release the platters, allowing free planar rotation. Automatic wheel position tracking further aligns the turntable to vehicle geometry.

Operational execution on this Steering Angle Tester follows a strictly defined, repeatable twelve-stage workflow to maintain test integrity and operator safety:

• The vehicle approaches the testing area and stops in position directly in front of the bench.
• The motorized system performs automatic alignment based on vehicle front wheel track parameters.
• The vehicle drives onto the platform and stops in the designated testing position.
• The pneumatic locking cylinders actuate to release the floating turntables.
• The operator turns the steering wheel fully to the left to execute the left steering angle measurement.
• The operator turns the steering wheel fully to the right to execute the right steering angle measurement.
• The steering wheel is returned to its neutral straight-ahead center position.
• The pneumatic cylinders engage to firmly clamp the floating turntables.
• The vehicle drives forward and exits the test bench area safely.
• The pneumatic cylinders release the turntables to allow mechanical re-centering.
• The turntable assemblies automatically return to their mechanical zero position.
• The system clamps the turntables and resets the plates laterally to both sides to conclude the cycle.

4. Technical Specifications and Foundation Engineering Guidelines

The CTZJ-13-2 Steering Angle Tester is built to handle heavy-duty commercial axle weights while providing fine measurement resolution. Sourcing specialists and civil engineers should review the technical specifications below to ensure compatibility with site infrastructure.

Engineering Parameter

Factory Specification Value

Equipment Model Designation

CTZJ-13-2

Maximum Allowable Axle Load Capacity

13,000 kg

Measuring Table Surface Diameter

ф500 mm

Angular Measurement Range

Left rotation: 0° to 50° / Right rotation: 0° to 50°

Platter Lateral Movement Range

500 mm

Data Display Method

Instrument display with integrated scale indication

Measurement Resolution

0.1°

System Measurement Accuracy

±2% Full Scale (FS)

Automatic Alignment Track Range (Front)

1,100 mm to 2,300 mm

Manual Turntable Center Distance

1,100 mm to 2,350 mm

Electrical Power Supply Requirements

AC 380V, 50 Hz

Pneumatic Air Source Pressure

0.8 MPa

Data output and station integration are managed through a versatile control architecture. The display console presents clear character readouts alongside scale indicators, features onboard standalone ticket printing, and provides networking capabilities to transmit angle records directly to a host inspection computer.

Civil engineering works require careful planning prior to machinery arrival. Electrical conduits must be installed strictly according to official foundation drawings. If a dedicated underground cable trench is unavailable, contractors must embed a rigid 50 mm diameter PVC conduit with a sweep bend exceeding 90 degrees and an overall length of 5 meters (up to 6 meters maximum) from the pit foundation to the control station.

5. Procurement Risk Mitigation and Inspection Protocols

Procuring a commercial Steering Angle Tester requires thorough verification of structural, pneumatic, and electrical specifications before installation. A primary procurement risk is installing an under-rated testing bench into a commercial lane, which can cause frame deformation or bearing destruction under overloaded freight vehicles.

The pneumatic supply is another critical factor. Operating the CTZJ-13-2 Steering Angle Tester with line pressure below the required 0.8 MPa can cause partial clamp engagement. This allows the floating plates to vibrate during drive-over traffic, accelerating spherical bearing fatigue. Facilities must ensure their compressor systems provide dry, clean air at a stable 0.8 MPa pressure.

Verification Dimension

Design Specification Target

Operational Consequence of Non-Compliance

Air Line Pressure

Stable 0.8 MPa clean, compressed air

Incomplete turntable clamping; bearing damage during vehicle transit

Electric Lateral Travel

Smooth 500 mm platter travel via motor-reducer

Lateral binding; failure to center on non-standard wheel tracks

Civil Conduit Routing

50 mm PVC pipe, bend > 90°, 5 m recommended length

Cable pulling snag risk; signal wire shielding deterioration

Axle Structural Rating

13,000 kg allowable axle load threshold

Frame deflection, disc distortion, metrology sensor failure

During pre-shipment or site acceptance audits, operators should verify smooth motorized travel across the full 1,100 mm to 2,300 mm automatic alignment range. Additionally, inspect the spherical rolling assembly to ensure clean compound planar movement of both floating bodies before conducting commercial fleet acceptance runs.

Frequently Asked Questions

What is the maximum axle load supported by the CTZJ-13-2 Steering Angle Tester?

The CTZJ-13-2 Steering Angle Tester is engineered for a maximum allowable axle load of 13,000 kg, allowing it to test heavy commercial transport vehicles, city buses, and light passenger automobiles safely.

Can regular bay traffic drive across the test plates without damaging the equipment?

Yes. The platform utilizes heavy-duty pneumatic locking cylinders that clamp the floating disc assemblies firmly after returning to their zero position. This protects internal spherical bearings, allowing standard transit vehicles to pass through the lane without causing mechanical damage.

What civil conduit specifications are needed if no cable trench exists?

When a dedicated floor cable trench is absent, install a rigid plastic PVC pipe with an outer diameter of 50 mm, a sweep turn greater than 90 degrees, and a total length of 5 meters (up to 6 meters is acceptable) running between the foundation pit and the operator console.

What are the primary measurement range and accuracy ratings of the unit?

The unit measures angular rotation across a range of 0° to 50° in both left and right directions, featuring an instrument resolution of 0.1° and an overall measurement accuracy of ±2% Full Scale (FS).

Conclusion: Implementing a Reliable Steering Angle Tester

Integrating a high-precision Steering Angle Tester into your vehicle inspection station improves fleet safety, automates testing workflows, and ensures rigorous compliance with transport regulations. With its heavy-duty 13,000 kg axle capacity, motorized track adjustment, and planar compound floating motion, the CTZJ-13-2 provides dependable accuracy for demanding lanes. Plant managers and engineering directors can consult with certified technical representatives to review civil foundation drawings and specify complete inspection systems tailored to their operational requirements.
