Vehicle headlight tester calibrator | MQB-1B

In vehicle inspection stations, metrological drift in optical diagnostic equipment creates severe compliance and safety risks. When optical benches lose alignment, automated test bays generate false passes or unwarranted rejections. Maintaining accuracy requires master hardware. The vehicle headlight inspection instrument calibrator serves as that metrological reference standard. Engineered to calibrate shop equipment such as a headlamp beam setter, the Cartesykj MQB-1B calibrator provides verified illumination and micro-angular deflection control to ensure inspection lines remain compliant with metrological mandates.

Table of Contents

• 1. Verified Equipment Definition and Material Scope for the Vehicle Headlight Inspection Instrument Calibrator
• 2. Buyer Value and Sourcing Considerations Supported by Supplied Facts
• 3. Verified Technology Trends and Calibrator Classifications
• 4. Documented Materials, Quality Controls, Certifications, and Components
• 5. Practical Sourcing and Risk-Mitigation Guidance for Calibrator Deployment
• 6. Frequently Asked Questions
• 7. Conclusion

1. Verified Equipment Definition and Material Scope for the Vehicle Headlight Inspection Instrument Calibrator

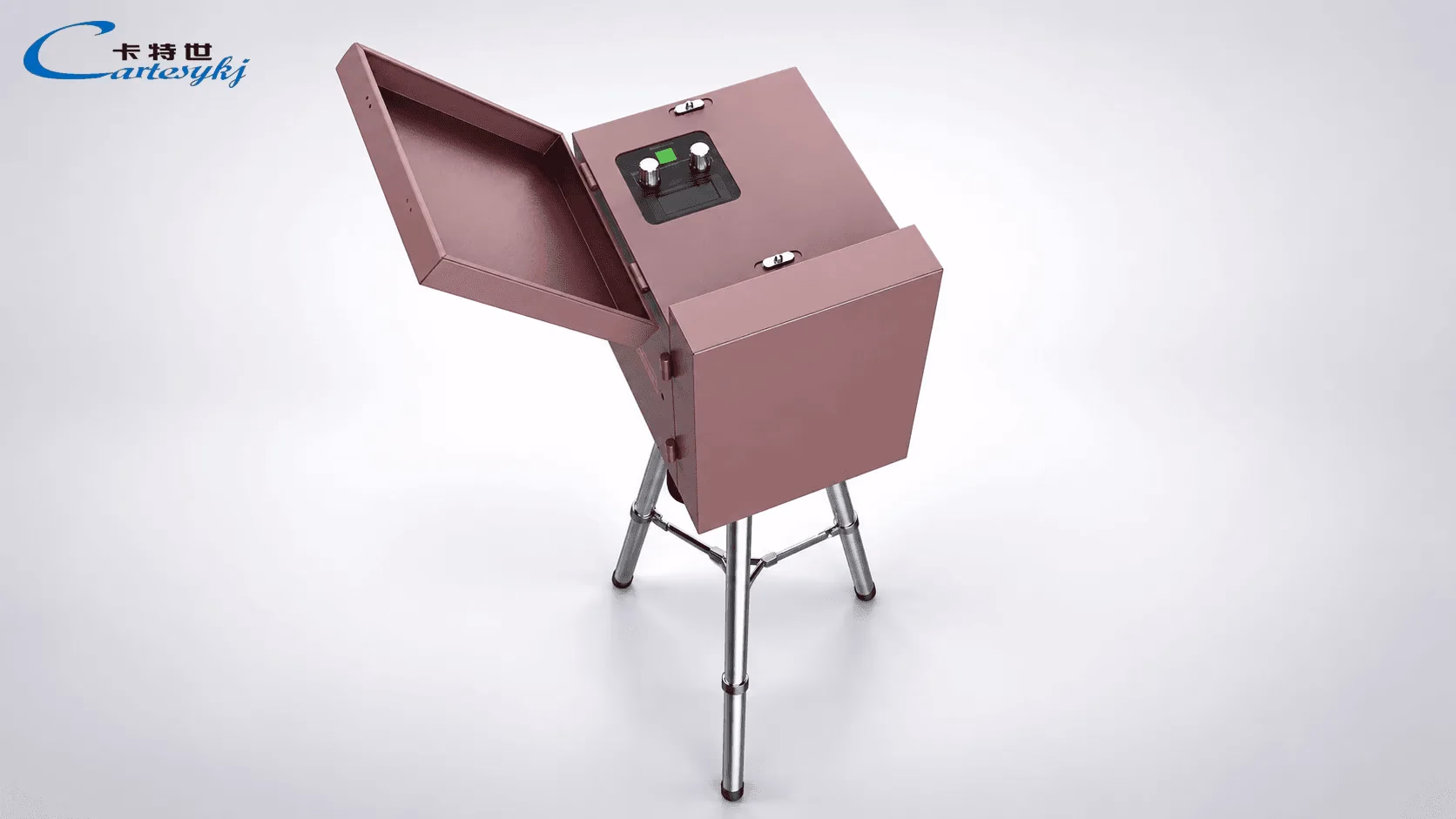

A vehicle headlight inspection instrument calibrator is a specialized testing and verification instrument designed to certify optical testing units. The Cartesykj MQB-1B vehicle headlight inspection instrument calibrator functions as an external optical and electrical standard. Rather than measuring the light emitted by an automobile directly, the unit projects traceable optical parameters into a headlight tester to verify the tester's internal measuring accuracy.

The MQB-1B architecture integrates a standard light source, a targeting laser, a DC regulated power supply, a precision voltmeter, horizontal and vertical angle rotation mechanisms, a leveling system, and an alignment assembly. These sub-assemblies simulate standardized high-beam patterns, low-beam cut-off line transitions, and directional aiming angles under controlled parameters.

The application scope of the MQB-1B vehicle headlight inspection instrument calibrator targets defined operational sectors across the automotive testing industry:

• Factory Verification: Used by manufacturers of headlight testers for end-of-line verification and factory calibration before customer delivery.
• Maintenance and Servicing: Employed by technical service divisions and certified repair departments performing scheduled maintenance and recalibration on vehicle inspection station equipment.
• Inspection Line Auditing: Deployed in periodic statutory audits to eliminate systemic drift in commercial vehicle roadworthiness lanes.

By providing a repeatable reference beam, this vehicle headlight inspection instrument calibrator enables accurate luminous intensity measurement checks and optical axis offset tracking, fulfilling statutory requirements in vehicle inspection environments.

2. Buyer Value and Sourcing Considerations Supported by Supplied Facts

For operations directors and metrology managers, procurement decisions concerning calibration hardware center on traceability, mechanical repeatability, and compliance risk. An optical tester in high-throughput lanes experiences mechanical vibration, dust ingress, and thermal fluctuations that degrade sensor alignment over time. Sourcing a dedicated vehicle headlight inspection instrument calibrator mitigates these risks directly.

A primary sourcing consideration is metrological compliance. The MQB-1B vehicle headlight inspection instrument calibrator strictly complies with verification regulations JJG967 (Verification Regulation of Calibrators for Motor Vehicle Headlight Testers) and JJG745 (Verification Regulation of Motor Vehicle Headlight Testers). Conforming to these documented regulatory frameworks ensures that vehicle testing facilities maintain evidentiary integrity during statutory audits.

Another major technical consideration is the distinction between workshop testing units and master calibration standards. While a headlamp beam setter is deployed on workshop floors to check vehicle lamps, a vehicle headlight inspection instrument calibrator verifies the optical measuring head of the beam setter itself. Sourcing standard calibrators requires evaluating physical rigidity, mechanical backlash limits, and electrical power regulation. A small angular shift in an uncalibrated tester can misread beam cut-offs, creating compliance failures for fleet operators.

Operational Metric

Uncalibrated Testing Environment

Traceable MQB-1B Calibration Routine

Measurement Drift Rate

Unmonitored photodiode and mechanical drift

Systematic tracking within ≤ 1.5%/10 min stability limits

Audit Compliance

Vulnerable to penalties under statutory audit standards

Full alignment with JJG967 and JJG745 verification codes

Inspection Line Accuracy

Elevated rate of false passes and unwarranted rejections

Optical axis angle verified within ±5′ tolerance

Photometric Precision

Unverified standard light output causing skewed readouts

Indication error controlled to not greater than ±4%

Purchasing an MQB-1B vehicle headlight inspection instrument calibrator ensures that statutory testing centers minimize inspection disputes by referencing an established national metrological standard.

3. Verified Technology Trends and Calibrator Classifications

Optical calibration in vehicle safety testing spans distinct functional domains: photometric intensity standard setting, angular deflection alignment, and cut-off line transition mapping. Modern vehicle inspection station equipment requires a vehicle headlight inspection instrument calibrator capable of servicing both analog optical units and digital camera-based systems.

Luminous Intensity Measurement Standards

Determining the photometric output of testing units requires precise electrical stabilization. The MQB-1B vehicle headlight inspection instrument calibrator incorporates a dedicated DC regulated power supply and onboard voltmeter to govern lamp filament excitation. By adjusting the regulated power feed, the technician controls the standard light source's luminous intensity across a wide range of (50 × 102 ∼ 800 × 102) cd. This electrical control prevents voltage fluctuations from distorting luminous intensity measurement values during verification.

Optical Axis and Cut-Off Line Calibration

Inspection equipment must evaluate both beam intensity and aiming trajectory. Modern headlamp beam setter units analyze low-beam cut-off lines and high-beam focus points. To calibrate these systems, the MQB-1B vehicle headlight inspection instrument calibrator utilizes precision horizontal and vertical angle adjustment knobs. The technician directs either a stabilized high-beam pattern or a sharp laser beam toward the tester. This enables precise verification of the optical axis offset angle and the low-beam cut-off transition corner across vertical and horizontal planes.

By integrating both standard high-beam illumination and laser projections, this vehicle headlight inspection instrument calibrator supports thorough headlight tester calibration routines across varied workshop configurations.

4. Documented Materials, Quality Controls, Certifications, and Components

The Cartesykj MQB-1B vehicle headlight inspection instrument calibrator is manufactured according to rigorous metrological parameters. Every unit integrates mechanical positioners, structural stabilization bases, and regulated optical electronics engineered to minimize measurement uncertainty.

Parameter Category

Technical Specification

Verified Performance Limit

Photometric Range

Luminous intensity measurement span

(50 × 102 ∼ 800 × 102) cd

Angular Deflection Range

Optical axis mechanical adjustment

Up 3° ∼ Down 3°, Left 3° ∼ Right 3°

Photometric Indication Error

Luminous intensity error margin

Not greater than ±4%

Photometric Repeatability

Successive measurement consistency

Not exceeding 1%

Luminous Output Stability

Temporal drift rate

Not exceeding 1.5% / 10 min

Light Distribution Symmetry

Geometric optical field symmetry

Not exceeding 10%

Zero-Position Angular Error

Zero-point indication baseline

Not greater than ±5′

Optical Axis Angular Error

Full deflection indication error

Not greater than ±5′

Backlash / Free Play

Rotation mechanism backlash error

Not exceeding 3′

Re-Leveling Stability

Optical axis shift after level reset

Not exceeding 3′

Physical, Environmental, and Electrical Characteristics

Reliable operation in testing facilities requires dependable structural and electrical stability. The MQB-1B vehicle headlight inspection instrument calibrator is specified to operate under the following physical parameters:

• Power Supply Requirements: AC 220V ± 22V, 50Hz ± 1Hz.
• Rated Power Consumption: 200W.
• Operating Temperature Envelope: -5°C to 40°C.
• Permissible Relative Humidity: ≤ 90% RH.
• Main Housing Dimensions: 327 mm × 252 mm × 341 mm.
• Instrument Mass: Host unit: 20 kg; Detachable tripod: 10 kg.

The combined 30 kg mass of the host and tripod provides mechanical stability, dampening shop floor vibrations during precision headlight tester calibration procedures.

5. Practical Sourcing and Risk-Mitigation Guidance for Calibrator Deployment

Integrating a vehicle headlight inspection instrument calibrator into an inspection facility requires structured operating routines. Metrology departments must establish clear verification steps to preserve equipment longevity and precision over extended usage cycles.

Pre-Calibration Alignment Protocol

Before initiating calibration sequences on testing instruments, technicians must mount the vehicle headlight inspection instrument calibrator securely on its tripod over a level floor. Use the onboard leveling mechanism to align the bubble level. Because optical axis variation must not exceed 3′ during level resets, the tripod locking mechanisms must be engaged firmly prior to powering the internal DC circuits.

Managing Power Regulation and Stabilization

The standard light source relies on a stable AC 220V supply. To meet the verified stability parameter of ≤ 1.5%/10 min, allow the vehicle headlight inspection instrument calibrator to warm up before taking official measurements. When conducting luminous intensity measurement checks across the (50 × 102 ∼ 800 × 102) cd span, verify that voltage adjustments correspond to values indicated on the precision voltmeter.

Mitigating Mechanical Backlash

The precision rotation mechanisms on the vehicle headlight inspection instrument calibrator have a backlash tolerance not exceeding 3′. When adjusting the optical axis between -3° and +3° across horizontal and vertical coordinates, approach target degree markings from a consistent rotational direction. This practice eliminates gear play and ensures that optical axis angle indication errors stay strictly within the documented ±5′ tolerance boundary.

6. Frequently Asked Questions

What is the primary role of a vehicle headlight inspection instrument calibrator?

A vehicle headlight inspection instrument calibrator functions as a precision reference standard. It is used by equipment manufacturers and maintenance personnel to verify, test, and calibrate the optical axis deflection, cut-off line recognition, and luminous intensity readings of headlight testers and headlamp beam setters.

Which national metrological standards does the MQB-1B adhere to?

The MQB-1B vehicle headlight inspection instrument calibrator complies with JJG967 (Verification Regulation of Calibrators for Motor Vehicle Headlight Testers) and JJG745 (Verification Regulation of Motor Vehicle Headlight Testers), making it suitable for regulatory auditing and standard workshop calibration routines.

How is optical axis deflection measured and verified using this device?

The MQB-1B vehicle headlight inspection instrument calibrator utilizes precision horizontal and vertical rotation mechanisms covering an adjustment range of Up 3° to Down 3° and Left 3° to Right 3°. Using a projected high-beam pattern or targeting laser, it verifies tester angular accuracy with an indication error of ≤ ±5′ and backlash limited to ≤ 3′.

What are the operational environmental limits for the MQB-1B?

The instrument is specified to operate across an ambient temperature range of -5°C to 40°C and in relative humidity levels up to ≤ 90%. It operates on standard AC 220V ± 22V (50Hz ± 1Hz) electrical infrastructure with a power draw of 200W.

Can the MQB-1B be used directly on vehicles on an inspection line?

No. The vehicle headlight inspection instrument calibrator is designed specifically to verify headlight testing machines. It does not measure vehicle headlamps directly; rather, it ensures that the vehicle inspection station equipment evaluating those headlamps operates within required accuracy thresholds.

7. Conclusion

Maintaining metrological integrity in vehicle testing lanes requires reliable reference standards. The Cartesykj MQB-1B vehicle headlight inspection instrument calibrator delivers the structural stability, luminous precision, and angular resolution required to verify modern inspection hardware. By pairing a standard light source and laser alignment system with compliance under JJG967 and JJG745, the MQB-1B provides inspection stations, manufacturers, and repair facilities with the verified baseline necessary to maintain total measurement accuracy.

For technical specifications, engineering consultations, or purchasing guidance regarding the MQB-1B vehicle headlight inspection instrument calibrator, contact our engineering team today.
