1. Equipment Definition and Material Scope

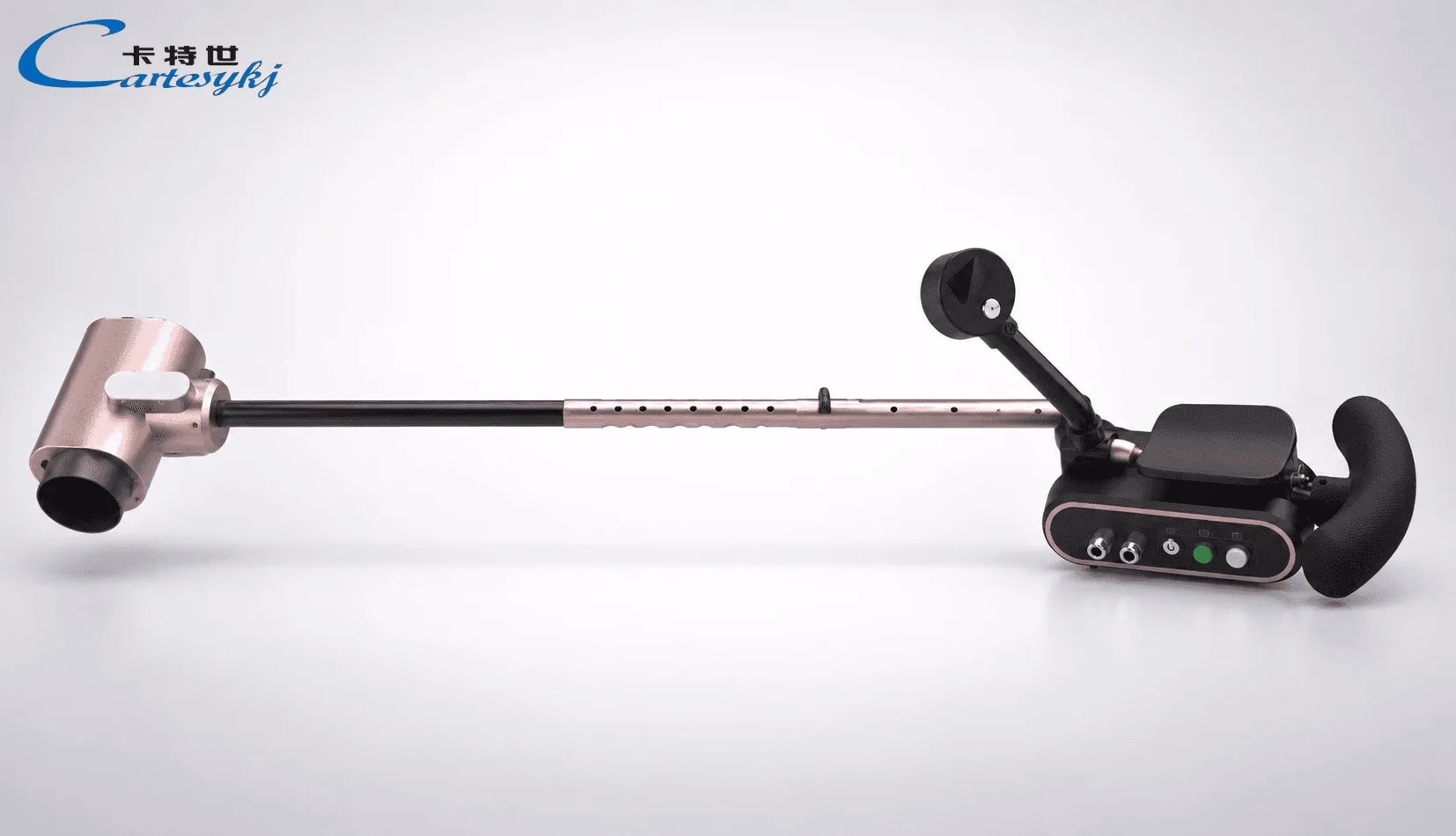

The Cartesykj MQY-300L is an intelligent, portable Ringelmann blackness meter designed to detect particulate matter (black smoke) levels emitted by compression-ignition (diesel) engines. Engineered for direct emissions screening, the device converts optical exhaust data into standardized Ringelmann ratings ranging from Level 0 to Level 5. The instrument integrates an ergonomic housing featuring a balanced center of gravity, an integrated support bracket, and an operational handle that enables stable, single-handed operation during rigorous roadside checks.

To accommodate diverse tailpipe geometries across light commercial vehicles, heavy-duty logistics haulers, and earthmoving machinery, the unit features an adjustable telescopic rod. The sensing head contains a specialized optical measurement chamber protected by high-strength optical lenses designed to shield sensitive internal optoelectronics from hot carbon soot contamination. For routine maintenance in field environments, the rear of the sampling chamber incorporates a quick-access opening that permits direct lens inspection and cleaning without disassembling core structural assemblies.

The MQY-300L serves two primary application areas defined by standardized environmental protection mandates:

• On-road diesel vehicle inspection: Mobile roadside spot checks, traffic enforcement screening, and transit fleet audit checkpoints evaluating on-road diesel exhaust under snap-acceleration or deceleration conditions.
• Non-road mobile diesel machinery testing: Field emission monitoring at construction sites, mining operations, logistics ports, and agricultural facilities where stationary or mobile industrial diesel engines operate under variable loads.

By pairing physical reach via its telescopic probe with direct digital image processing, the unit operates across these environments without requiring external power umbilical lines or bulky benchtop chassis.

2. Buyer Value and Operational Sourcing Considerations

Procurement teams and regulatory agencies assessing field emission monitoring tools must balance throughput, data reliability, and equipment survivability. Handheld field testing often encounters hostile testing conditions, such as high ambient temperatures, aggressive particulate loading, shifting outdoor illumination, and awkward tailpipe angles. Equipment chosen for regional or national enforcement programs must minimize inspection bottlenecks while maintaining high measurement integrity.

The Cartesykj MQY-300L delivers concrete operational advantages designed to address these core field-testing challenges:

• Rapid inspection cycles: With a response time of less than 1 second, the instrument enables rapid screening protocols, preventing roadside traffic queues and streamlining multi-vehicle depot inspections.
• Shift-long battery autonomy: Powered by an internal 12V, 5000mAh rechargeable power supply, the unit provides more than 8 hours of continuous operational runtime, covering standard work shifts without mid-day recharging.
• Reduced operational strain: The ergonomic chassis design, built-in support bracket, and optimized weight distribution allow field technicians to conduct repeatable inspections single-handedly, reducing operator fatigue during prolonged enforcement campaigns.
• Wireless connectivity: Integrated Wi-Fi communication functionality allows instant, automated transmission of raw measurement values and Ringelmann levels to central enforcement platforms or fleet management databases, mitigating the risk of manual transcription errors.

When selecting portable exhaust instrumentation, organizations frequently compare specialized optical blackness detectors with alternative emission screening configurations:

Evaluation Metric

Cartesykj MQY-300L Meter

Smoke Measurement Telescope

Smoke Opacity Meter (Benchtop)

Measurement Principle

Image recognition with ambient compensation

Visual human comparison to reference cards

Light extinction / light absorption coefficient (k)

Operator Subjectivity

Objective algorithmic output

Subjective (dependent on human vision and angle)

Objective photometric receiver output

Response Time

< 1 second

Variable (requires visual stabilization)

Typically 1 to 3 seconds

Exhaust Adaptation

Integrated telescopic rod for varied heights

Remote visual tracking (line of sight required)

Fixed sample probe with heated umbilical lines

Data Connectivity

Direct Wi-Fi wireless transmission

None (manual logging required)

RS-232, USB, or analog connections

Operational Portability

Single-hand handheld unit (internal battery)

Handheld optical tube (no power required)

Heavy benchtop case requiring AC or vehicle power

3. Technology Classifications and Operating Principles

Quantifying diesel soot particulate requires distinct instrument architectures depending on whether visual plume density, light absorption coefficients, or relative blackness grades are being tracked. The Cartesykj MQY-300L operates on the principle of intelligent image recognition, utilizing advanced digital image processing technology to evaluate the exhaust stream.

Standard visual comparison methodologies—such as the traditional smoke measurement telescope—rely entirely on an operator viewing a moving exhaust plume against a varying daylight background and matching it visually to a printed Ringelmann chart. This introduces severe operator subjectivity, ambient lighting variance, and viewing angle errors. In contrast, the MQY-300L stabilizes the measurement environment internally. The unit incorporates a high-brightness fill light inside the measurement chamber to eliminate ambient sunlight fluctuations, shadowing, and night-time lighting deficits. An integrated environmental compensation algorithm further adjusts for shifting environmental conditions, ensuring consistent optical contrast.

It is equally important to distinguish this technology from a continuous smoke opacity meter. While an opacity meter measures the absolute light-attenuation fraction of exhaust passing between a discrete emitter and receiver inside a heated flow tube, an intelligent Ringelmann blackness meter evaluates the localized blackness grading based on standardized image distribution rules. The MQY-300L calculates and outputs this value using digital scales defined directly in environmental protection standards.

Modern field testing architectures categorize emission testing tools according to their analytical methodology:

• Visual estimation systems: Optical telescopes and comparative cards that provide low-accuracy manual ratings without internal compensation.
• Dynamic partial-flow opacimeters: In-line or sampling-type optical chambers configured to measure absorption coefficients under controlled heating.
• Intelligent digital image blackness detectors: Self-contained, illuminated sensing chambers that process optical plume data through computerized algorithms, such as the architecture used by the MQY-300L.

When utilized within comprehensive vehicle testing regimes, the MQY-300L functions alongside an exhaust emission tester, delivering rapid, non-invasive particulate verification prior to full-scale mechanical loading procedures.

4. Documented Specifications and Quality Benchmarks

The Cartesykj MQY-300L portable Ringelmann blackness meter adheres to rigid technical baselines formulated to meet both highway and industrial off-highway emissions compliance rules. All operational metrics below represent verified manufacturer engineering specifications:

Technical Parameter

Documented Manufacturer Value

Measurement Range

0 to 5 Ringelmann blackness level

Indication Error

≤ 0.25 Ringelmann blackness level

Repeatability

≤ 0.2 Ringelmann blackness level

Resolution

0.01 level

Response Time

< 1 second

Operating Endurance

8 hours continuous runtime

Power Supply System

12V DC, 5000mAh rechargeable battery pack

Communication Interface

Integrated Wi-Fi wireless module

Optical Protection

High-strength optical lens with rear cleaning opening

Structural Configuration

Ergonomic handle, support bracket, telescopic rod

From a regulatory standpoint, the instrument meets the explicit technical criteria outlined in two key national diesel emissions frameworks:

• GB 3847: Limits and measurement methods for emissions from diesel vehicles (Free Acceleration Method and LugDown Method). The MQY-300L fulfills the technical specifications mandated for assessing Ringelmann smoke levels during vehicle road inspections and inspection station pre-checks.
• GB 36886: Limits and measurement methods for exhaust smoke from non-road mobile diesel machinery. The instrument meets the measurement requirements for verifying exhaust blackness across off-highway diesel machinery under field operating conditions.

Internal optical integrity is maintained through an isolated chamber design. The high-strength optical protection lens prevents corrosive exhaust particulates, unburned hydrocarbons, and moisture from depositing onto sensitive optoelectronic sensors. Technicians can clean the lens between inspection intervals via the designated rear opening, preserving measurement repeatability without requiring optical recalibration between shifts.

5. Practical Sourcing and Risk-Mitigation Guidance

Procuring field-grade emission monitoring equipment involves assessing life-cycle maintenance, field ergonomics, and data pipeline compatibility. Sourcing managers must evaluate how an instrument integrates into daily roadside operations and fleet compliance verification procedures to avoid operational friction or contested violation notices.

When deploying digital blackness detection instrumentation, procurement specialists should consider these practical evaluation criteria:

• Tailpipe accessibility: Ensure the telescopic reach aligns with the vehicle profiles in your fleet or jurisdiction, from low-slung passenger vehicle pipes to elevated industrial exhaust stacks.
• Optics maintenance: Select instruments featuring sealed measurement chambers and dedicated lens-cleaning access points. Direct exposure of bare optical sensors to raw diesel exhaust causes rapid drift and frequent sensor failure.
• Illumination independence: Field testing occurs under varying weather conditions, direct sunlight, and nighttime environments. Internal high-brightness fill lighting is essential to prevent ambient illumination from corrupting optical grading.
• Data integrity and integration: Ensure the instrument can export records via standard wireless protocols (such as Wi-Fi) to interface directly with regulatory enforcement platforms or computerized maintenance management systems.

Buyers are encouraged to conduct baseline pilot testing on representative fleets to verify that instrument response times (<1s) and repeatability thresholds (≤0.2 level) align with local legal and administrative evidentiary standards.

6. Frequently Asked Questions

How does a Ringelmann blackness meter differ from a smoke opacity meter?

A smoke opacity meter measures the degree of light attenuation or absorption coefficient (k-value) as exhaust passes through an optical measurement path. A Ringelmann blackness meter evaluates the plume against the standard 0 to 5 Ringelmann scale. The MQY-300L uses intelligent image processing to assign an objective, standardized Ringelmann grade, making it ideal for direct compliance testing under standards such as GB 3847 and GB 36886.

What is the benefit of the built-in fill light in the MQY-300L?

Outdoor lighting conditions can significantly distort optical measurements. Direct sunlight, cloud cover, or nighttime darkness alters how a smoke plume appears to optical sensors. The built-in high-brightness fill light inside the MQY-300L creates a stabilized optical environment within the measurement chamber, allowing the ambient compensation algorithm to provide accurate, repeatable readings regardless of exterior conditions.

How is the optical lens protected from diesel soot contamination?

The Cartesykj MQY-300L features a high-strength optical protective lens separating the exhaust plume passage from sensitive internal imaging components. This design prevents soot accumulation on the core electronics. To maintain measurement precision over extended shifts, the sampling chamber includes a rear access opening that allows operators to inspect and clean the lens surfaces easily in the field.

What regulatory standards govern the MQY-300L?

The Cartesykj MQY-300L satisfies the technical and operational requirements of GB 3847 (covering exhaust limits and measurement methods for on-road diesel vehicles under free acceleration and loading deceleration methods) and GB 36886 (specifying exhaust smoke limits and testing protocols for non-road mobile diesel machinery).
