2WD/4WD Chassis Dynamometer | CTDCG -3J/CTDCG-3-4WD

Tuning or validating modern high-output drivetrains without controlled testing introduces severe mechanical risk, inaccurate diagnostic results, and prolonged workshop turnaround times. Evaluating vehicle tractive effort, engine output, and drivetrain integrity requires a repeatable, lab-grade testing platform. Investing in a professional Chassis Dynamometer allows workshops, vehicle inspection facilities, and powertrain R&D teams to measure real-world tractive force and horsepower safely in a stationary environment while simulating authentic road loads.

This technical guide details equipment architecture, working principles across 2WD and all-wheel-drive platforms, price considerations, and factory-supplied specifications to guide your procurement evaluation.

Table of Contents

• Equipment Definition and Application Scope
• Buyer Value and Sourcing Considerations
• Technology Classifications and Operating Modes
• Documented Specifications and Component Systems
• Practical Sourcing and Risk Mitigation
• Frequently Asked Questions
• Engineering Review & Consultation

Equipment Definition and Application Scope

A chassis dynamometer is a specialized testing apparatus designed to evaluate the power, torque, speed, and tractive capabilities of fully assembled road vehicles directly from their drive wheels. Rather than removing an engine for bench testing, the vehicle is mounted onto precision-machined mechanical rollers. The system captures tractive force and drivetrain performance across the engine rev range using high-accuracy force and rotational speed sensors.

These systems integrate a mechanical base frame, roller sets, high-speed data bus control systems, and power absorption units (PAUs). Modern configurations rely on system inertia adaptive algorithms to calculate wheel power, parasitic drivetrain losses, and total engine output. Digital control platforms communicate via wired or high-speed Wi-Fi interfaces to industrial PCs or workstations, outputting real-time power/torque curves, operational readouts, and exportable documentation.

Target Sectors and Testing Capabilities

Chassis dynamometers serve critical functional roles across multiple automotive sectors:

• Powertrain R&D Centers: Conducting high-speed endurance checks, engine steady-state mapping, and thermal dissipation studies.
• ECU Calibration & Performance Tuning: Diagnosing combustion events under sustained loads using integrated AFR meters, knock monitoring, and diagnostic scan tools.
• Used Vehicle Appraisal Facilities: Measuring remaining powertrain health, driveline drag, and verified road-wheel output.
• Automotive Repair and Overhaul Centers: Troubleshooting transmission shift errors, driveline vibrations, and cooling limits under loaded conditions without running road trials.

Standard testing scopes encompass maximum vehicle speed, start-up and overtaking acceleration, hill-climbing tests (steep and prolonged grade simulation), coast-down drag evaluation, speedometer calibration, odometer verification, and engine steady-RPM mapping.

Buyer Value and Sourcing Considerations

Procuring a chassis dynamometer requires balancing shop space, target vehicle profiles, and budgetary limits. If you are reviewing a chassis dynamometer for sale, the primary decision factor centers on whether your test envelope demands a two-wheel-drive (2WD) or an all-wheel-drive (AWD/4WD) layout.

Drivetrain Configuration: 2WD vs. AWD Platforms

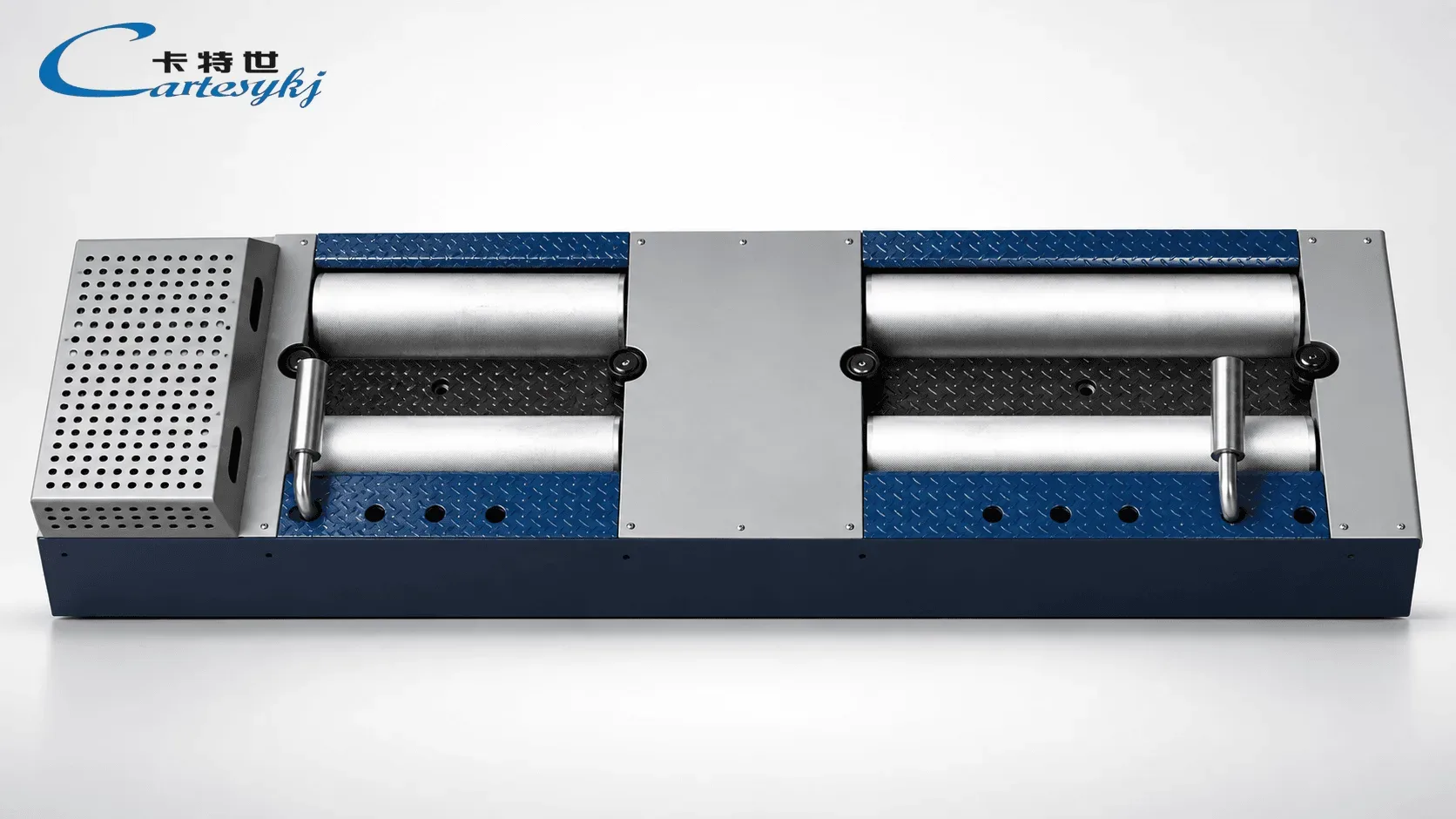

Equipment configuration dictates whether your shop can accept contemporary multi-axle drivetrains. A two-wheel-drive dynamometer, such as the Cartesykj CTDCG-3J, features a single set of rollers engineered for front-wheel or rear-wheel drive platforms. It provides a compact footprint and requires minimal pit excavation or surface ramping.

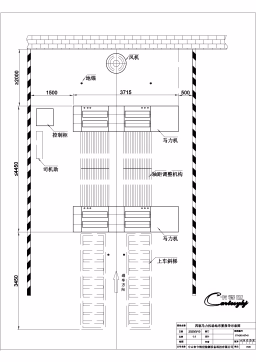

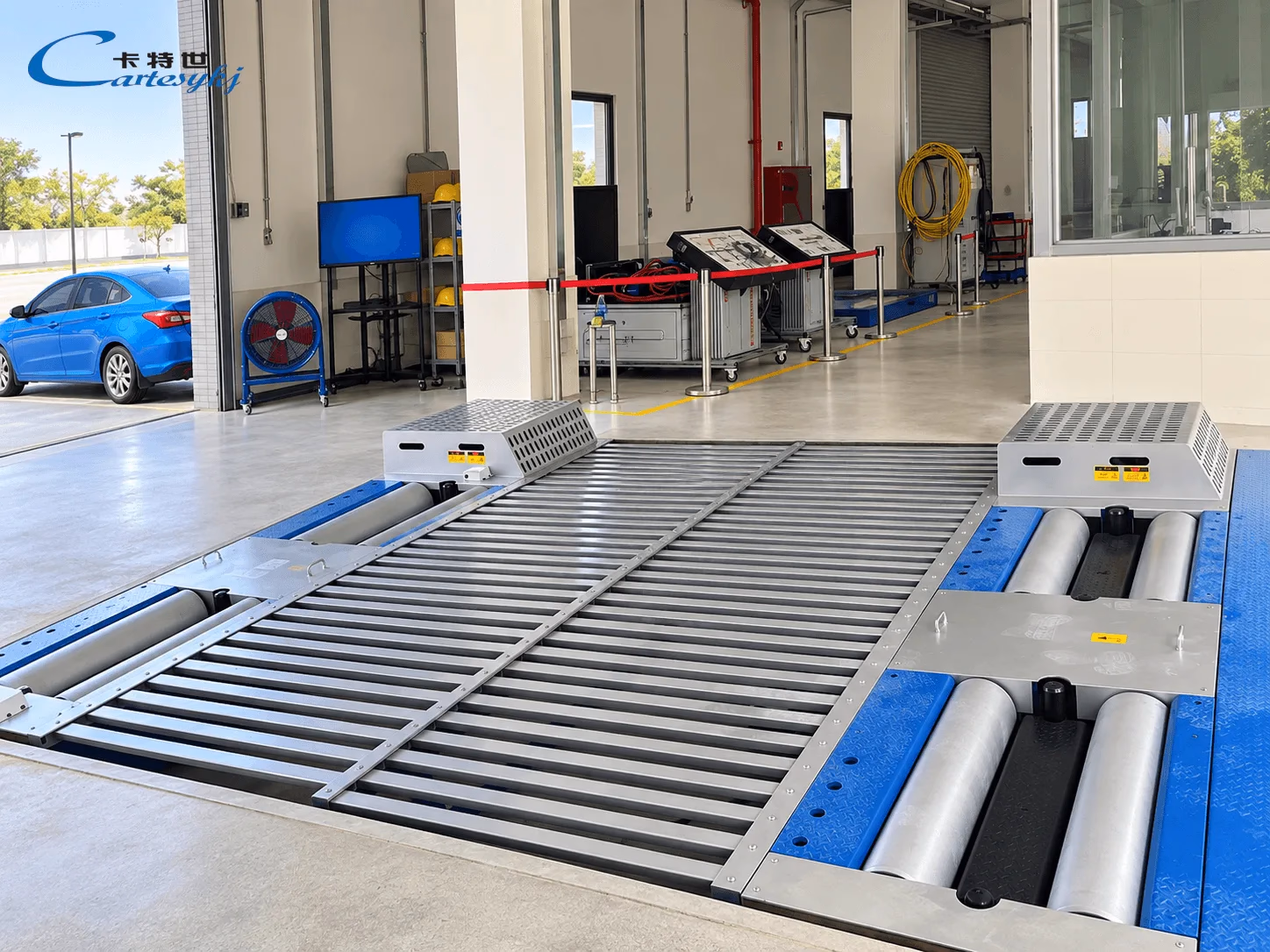

Conversely, a four-wheel-drive system like the CTDCG-3-4WD features twin roller assemblies with an adjustable wheelbase mechanism (typically spanning 2,100 mm to 3,200 mm with 0–1,100 mm automated or manual adjustment range). This flexibility is mandatory for testing modern all-wheel-drive road cars, high-performance sports cars with non-disengageable AWD, electronic hybrids, and multi-motor electric vehicles (EVs) without damaging viscous couplings or triggering driveline error codes.

Understanding Equipment Price Drivers

When assessing overall chassis dynamometer price, buyers must analyze more than just base frame construction. Core factors influencing total chassis dyno cost include:

• Power and Absorption Capacity: Equipment configured for 1,000 hp uses a single absorber assembly, whereas platforms rated for 2,000 hp incorporate dual air-cooled eddy current units, doubling braking hardware costs.
• Drivetrain Synchronicity: AWD systems require secondary roller beds, linear bearing rails, and wheelbase drive motors, pushing base equipment costs higher than 2WD alternatives.
• Analytical Add-On Modules: Base systems deliver core force, speed, and horsepower calculations. Comprehensive diagnostic suites require options such as air-fuel ratio (AFR) meters, five-gas exhaust analyzers, gravimetric fuel flow meters, and wireless OBD-II communication modules.
• Site Installation and Infrastructure: Factory price quotes often cover the machine hardware and standard control software, while civil pit groundwork, ventilation/exhaust extraction piping, and 380V industrial electrical supply are external site expenses.

Platform Model Drive Type Power Capacity Max Traction Baseline Hardware Target

CTDCG-3J 2WD (Front/Rear) 1,000 hp ≥25 kN Light-duty service, 2WD tuning, inspections

CTDCG-3-4WD 4WD / AWD / 2WD 2,000 hp ≥25 × 2 kN AWD performance, EV/Hybrid testing, R&D

Technology Classifications and Operating Modes

Chassis dynamometers fall into two primary mechanical categories: pure inertia systems and absorbed-load platforms. Selecting between them defines the testing methodologies available to your technicians.

Inertia Dynamometers vs. Absorbed-Load Systems

Pure inertia dynos rely entirely on spinning a fixed-mass steel roller. By recording the rate of rotational acceleration over time against a known moment of inertia, software calculates horsepower and torque. While effective for wide-open-throttle (WOT) sweeps, inertia systems cannot hold a vehicle at a fixed speed or load step.

Modern commercial testing demands an integrated power absorption unit (PAU). High-specification systems use air-cooled eddy current brakes. In an eddy current retarder, stationary electromagnets induce circular electric currents within rotating conductive discs, generating smooth, electronically controlled magnetic drag without friction lining wear. This allows operators to run:

• Constant-Speed Testing: The dynamometer locks the vehicle to an exact speed (e.g., 80 km/h or 120 km/h) regardless of throttle input, enabling real-time ignition and fuel trim adjustments across varied manifold pressure points.
• Constant-Traction Loading: The PAU maintains a steady pulling force against the vehicle wheels, simulating sustained mountain climbs or aerodynamic headwind resistance.
• Step-RPM Mapping: The system automatically steps the engine through discrete rev targets (e.g., 2,500 RPM, 3,000 RPM, 3,500 RPM) to map ECU parameters systematically.

By coupling air-cooled eddy current absorbers with a defined reference inertia mass (such as 908 kg ±18 kg), the test bench enables both dynamic wide-open-throttle sweeps and sustained steady-state mapping.

Documented Specifications and Component Systems

Engineering parameters define testing safety margins, vehicle compatibility, and data repeatability. The following table provides the documented technical specifications for the Cartesykj CTDCG chassis dynamometer series:

Technical Parameter CTDCG-3J (2WD) Specification CTDCG-3-4WD (4WD) Specification

Rated Axle Load 10,000 kg 10,000 kg

Max Test Vehicle Mass 3,500 kg 3,500 kg

Testable Power Capacity 1,000 hp 2,000 hp

Max Tractive Effort ≥25 kN ≥25 × 2 kN

Roller Diameter × Length φ216 × 850 mm φ216 × 850 mm

Roller Inner / Outer Span 700 mm / 2,400 mm 700 mm / 2,400 mm

Roller Center Distance 437 mm 437 mm

Max Permissible Speed ≥260 km/h ≥260 km/h

Test Wheelbase Range N/A (Single Axle) 2,100 mm – 3,200 mm

Wheelbase Adjustment Stroke N/A 0 – 1,100 mm

Reference Inertia Mass 908 kg ±18 kg 908 kg ±18 kg

Power Absorption Method Air-cooled eddy current machine Air-cooled eddy current machine (×2)

Rated Absorbed Torque 3,200 N·m 3,200 N·m × 2

Measurement Accuracy (Speed) ≤±1% ≤±1%

Measurement Accuracy (Torque) ≤±2% ≤±2%

Measurement Accuracy (Power) ≤±2% ≤±2%

Bare Equipment Net Mass 1,800 kg 3,800 kg

Pneumatic Supply Requirement ≥0.8 MPa ≥0.8 MPa

Input Operating Power AC 220V, 50 Hz AC 220V, 50 Hz

Blower / Fan Power Supply AC 380V, 50 Hz AC 380V, 50 Hz

Operating Ambient Temp 0 – 40 °C 0 – 40 °C

Hardware Architecture and Auxiliary Sensor Packages

A functional dynamometer cell comprises structured mechanical and electronic subsystems. The structural base utilizes high-tensile steel framing anchored to floor foundations to isolate vibration during high-speed runs up to 260 km/h. High-precision torque arm load cells measure reaction forces directly from the eddy current stators, while digital pulse encoders monitor roller surface speed.

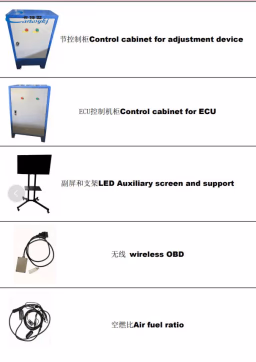

For turnkey powertrain analysis, standard data channels can be expanded through optional peripheral hardware:

• Exhaust Gas Analysis (MQW-511): Captures emissions concentration during continuous loaded driving cycles.
• Air-Fuel Ratio Analyzer (GZCVL LCM2): Delivers broadband oxygen measurement to evaluate cylinder mixture formation under load.
• Fuel Consumption Flowmeter (CT-5033): Records volumetric or mass fuel consumption to quantify engine thermal efficiency.
• Wireless OBD Module (CT-5008): Pulls CAN-bus telemetry directly from the vehicle port, correlating dynamometer wheel speed with internal engine RPM, spark advance, and throttle pedal percentage.
• Exhaust Evacuation System (CT-5075): Removes high-temperature combustion by-products from enclosed facility bays.

Practical Sourcing and Risk Mitigation Guidance

Acquiring industrial workshop test equipment involves multi-faceted risk management spanning facility preparation, cargo logistics, and warranty terms. Reviewing verified factory trade terms ensures project milestones remain predictable.

Facility Readiness and Electrical Infrastructure

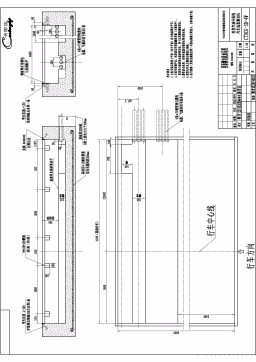

Before an imported chassis dyno for sale arrives at your receiving bay, verify the installation site meets foundational tolerances. A dual-axle system with an unladen mass of 3,800 kg requires a reinforced concrete pit or dedicated surface platform capable of handling axle loads up to 10,000 kg. High-output cooling fans and air extraction blowers demand dedicated three-phase AC 380V industrial feeds, while electronic instrumentation operates on stabilized AC 220V circuits. Additionally, pneumatic safety locks and lift tables require a constant compressed air supply of at least 0.8 MPa.

Contract Terms, Shipping, and Quality Coverage

When reviewing commercial proposals from export manufacturers, procurement specialists should confirm standard commercial terms:

• Component Customization: Industrial manufacturers can often calibrate software output routines, generate custom reports in Word or Excel formats, and tailor structural horsepower ceilings to match unique testing regimes.
• Commercial Inclusions: Verify whether quotes reflect CIF, FOB, or EXW terms. Typical baseline equipment quotes exclude overseas ocean freight and onsite civil commissioning labor unless specifically negotiated.
• Warranty Protection: Cartesykj machinery includes a standard one-year warranty covering manufacturing and electronic defects on the main unit and standard control units.
• Quote Validity: Given raw steel and electrical component market movements, standard formal quotations carry fixed validity terms (typically 30 calendar days) under advance-payment-to-dispatch terms.

Frequently Asked Questions

How much does a chassis dyno cost to acquire and install?

Baseline equipment pricing depends primarily on axle configuration and absorption capacity. A single-axle 1,000 hp eddy current unit sits at an entry commercial tier, whereas an adjustable dual-axle 2,000 hp AWD platform represents a substantially higher initial capital investment. Total project expenditure must also account for optional analyzers, local ocean freight, pit excavation, 380V electrical hookups, and dedicated high-volume cooling fans.

What is the primary difference between a chassis dyno and an engine dyno?

An engine dynamometer mounts a bare engine directly onto an engine stand, measuring crankshaft power without transmission or accessory parasitic drag. A chassis dynamometer measures overall tractive effort directly at the vehicle drive wheels, testing the complete mechanical assembly including transmission, differential, drive axles, and tire compliance under simulated road loads.

Can a 4WD chassis dynamometer test hybrid and electric vehicles?

Yes. Systems such as the CTDCG-3-4WD accommodate conventional internal combustion engines, multi-motor EV architectures, and complex hybrid drivetrains. The integrated power absorption assemblies and adjustable 2,100–3,200 mm wheelbase prevent cross-axle speed differential errors that would otherwise trigger traction control faults or damage AWD center transfer mechanisms.

What level of measurement accuracy can operators expect?

Factory-calibrated modern dynamometers achieve high repeatability using precision strain gauges and speed sensors. Documented accuracy limits for the CTDCG platform provide speed indication errors within ≤±1%, with total torque and power measurement uncertainty held within ≤±2% under standard operating temperatures between 0 °C and 40 °C.

Engineering Review & Consultation

Selecting the proper Chassis Dynamometer configuration requires evaluating your facility's vehicle duty cycles, space parameters, and testing scope. Contact our technical team with your facility dimensions, electrical supply characteristics, and intended testing mix (2WD, AWD, or EV) to receive detailed technical drawings, foundational schematics, and an itemized commercial quotation.
