Brake & Axle Load Testing Equipment

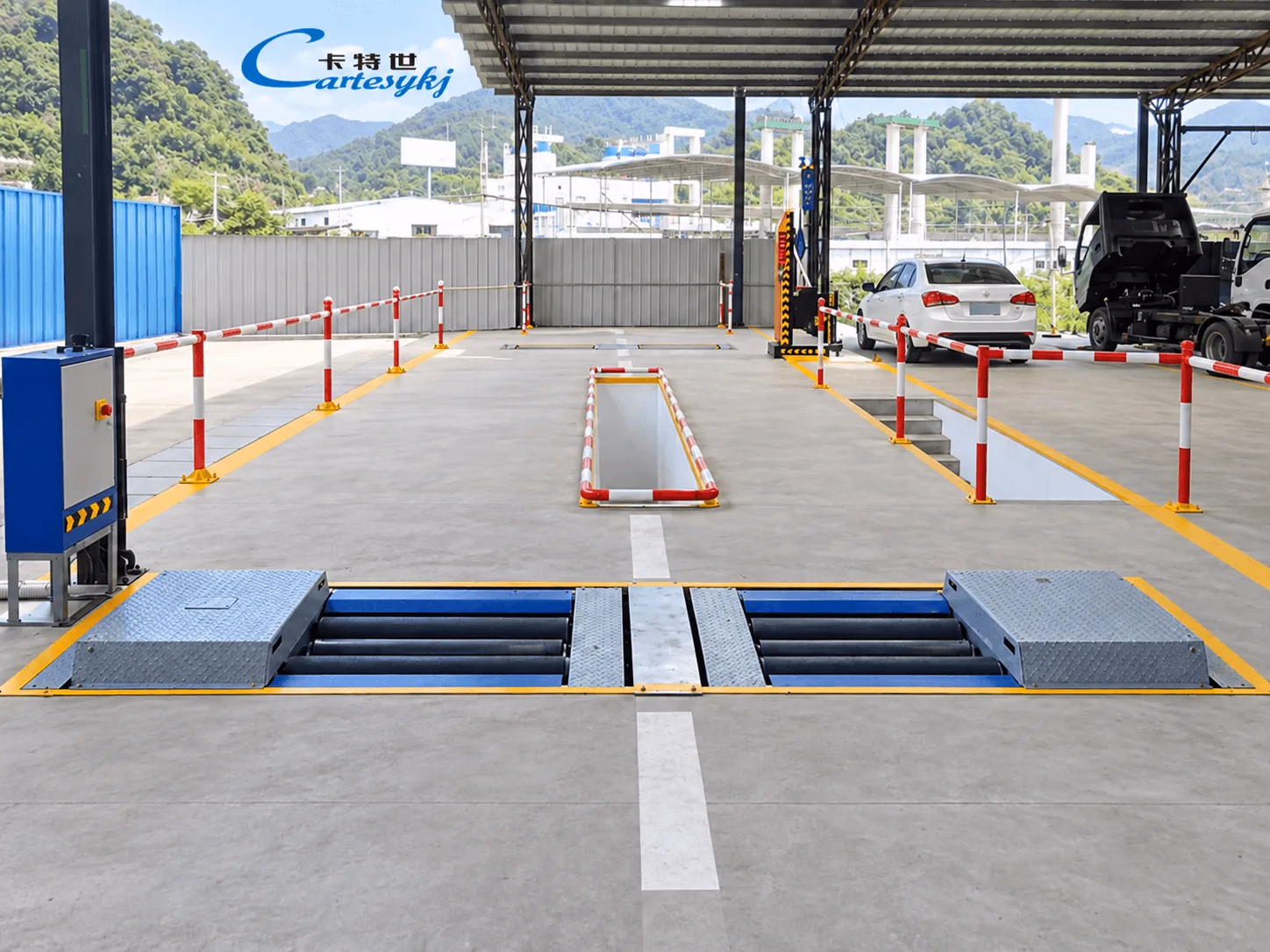

Roller Brake Tester With Axle Load | CTFZ-3B/CTFZ-10B/CTFZ-13B
Vehicle brake evaluation represents a zero-tolerance checkpoint in transport safety and fleet compliance. Installing a high-precision brake tester ensures commercial fleets, municipal testing authorities, and repair fac...
Vehicle brake evaluation represents a zero-tolerance checkpoint in transport safety and fleet compliance. Installing a high-precision brake tester ensures commercial fleets, municipal testing authorities, and repair facilities can pinpoint braking imbalances before vehicles return to public roads. The Cartesykj roller test bench platform delivers precise dynamic brake force and axle load measurements within an integrated structural frame.
Modern testing centers face strict operational throughput requirements and rigorous statutory safety margins. Choosing the right brake performance tester requires balancing wheel track dimensions, maximum axle loads, power demands, and sensor repeatability. This technical reference breaks down engineering configurations across the CTFZ series, detailing mechanical construction, data capture tolerances, and installation requirements for the modern brake tester line.
Table of Contents
- Verified Equipment Definition and Material/Application Scope
- Buyer Value and Sourcing Considerations Supported by Supplied Facts
- Verified Technology Trends and Classifications
- Documented Materials, Quality Controls, Certifications and Components
- Practical Sourcing and Risk-Mitigation Guidance
- Frequently Asked Questions
- Conclusion
Verified Equipment Definition and Material/Application Scope
A roller brake tester with axle load is specialized vehicle inspection equipment engineered to measure the braking force of each vehicle axle (left and right wheels) alongside dynamic wheel load. Operating under the vehicle's rated load-bearing mass, this type of brake tester identifies operational deficiencies in commercial and passenger vehicle braking circuits.
The unit measures discrete axle parameters, calculating total braking force, process deviation, and maximum deviation between opposing wheels. When assessing vehicle stability, tracking process deviation ensures that braking force increases symmetrically on both sides of an axle. If one brake caliper or air chamber lags during application, the deviation spikes before reaching peak force, pinpointing sticking guide pins or unequal hydraulic line pressure.
Furthermore, it records the proportional relationship between gross braking force and axle load, alongside the ratio of parking brake force to overall vehicle mass. When fitted with an optional foot brake pedal pressure gauge, the bench captures pedal effort and brake coordination response curves, allowing inspectors to graph and print comprehensive brake force curves and business power curves.
The system evaluates multiple vehicle weight categories based on structural load limits across distinct operational environments:
- Statutory Inspection Stations: Periodic roadworthiness testing for passenger cars, light commercial vans, urban transit buses, and heavy logistics trucks. Regulatory authorities rely on consistent data logging to enforce national transport safety mandates.
- Fleet Maintenance Depots: Diagnostic brake profiling to eliminate directional pull, uneven pad wear, and axle imbalance across high-mileage freight fleets. Regular verification on an in-house brake tester prevents roadside out-of-service orders.
- Automotive Repair Centers: Pre- and post-repair verification of friction material replacements, hydraulic repairs, and pneumatic braking systems. Quantifiable printouts confirm that repairs meet manufacturer specifications before vehicle handover.
- Third-Party Certification Lanes: Standardized safety auditing requiring permanent physical or digital records of dynamic pedal force and braking coordination curves.
Buyer Value and Sourcing Considerations Supported by Supplied Facts
Sourcing an industrial-grade Automotive Brake Test Bench demands close scrutiny of measurement accuracy, structural longevity, and floor footprint. The Cartesykj CTFZ series delivers a measured brake force error below 1.5%, outperforming standard national threshold tolerances set at 3.0%. This margin protects inspection facilities against borderline miscalculations and testing disputes.
Repeatability is vital for busy testing facilities. When a vehicle undergoes successive test runs, the measured peak braking forces must remain stable. High repetition performance ensures that variations reflect true mechanical changes in the vehicle's brake system rather than calibration drift or mechanical play inside the brake tester itself.
Integrating high-precision weight sensors directly into the roller framework converts the assembly into a combined brake tester with axle load. Combining both diagnostic functions eliminates the need to buy and install an independent axle scale, saving valuable bay floor area and lowering overall capital investment.
Operational safety and mechanical protection also depend on targeted tire-preservation mechanisms. During high-effort testing, sudden wheel lock can scuff or damage tire tread against abrasive roller surfaces. The CTFZ system features an automatic stop device designed to halt roller rotation immediately during wheel slip, preventing excessive tire abrasion. Operators can specify this protection via a mechanical third-roller contact sensor or through software-controlled motor shutdown protocols.
Vehicle transit efficiency is further enhanced by an optional pneumatic airbag lifting device. This assembly raises and lowers the roller bay on demand, smoothing the entry and exit of low-clearance vehicles and reducing transit shock on the test chassis during high-volume inspection shifts. For facilities handling hundreds of vehicles daily, this rapid transit reduces total cycle time per bay.
Verified Technology Trends and Classifications
Industrial vehicle inspection equipment has transitioned toward heavy-duty, integrated roller systems capable of handling varying axle widths and dynamic testing loads. The Cartesykj CTFZ series categorizes capacity across three primary configurations: light-duty (CTFZ-3B), medium-duty (CTFZ-10B), and heavy-duty (CTFZ-13B). Facilities seeking an industrial brake tester for sale must align target vehicle classifications with appropriate equipment ratings.
Technical Parameter
CTFZ-3B
CTFZ-10B
CTFZ-13B
Maximum Axle-Load Mass (kg)
3,000
10,000
15,000
Wheel Base Span (Inner / Outer mm)
700 / 2,400
700 / 2,700
700 / 2,900
Braking Force Measurement Range (kN)
2 × (0–10)
2 × (0–30)
2 × (0–45)
Detection Speed (km/h)
2.5
2.5
2.5
Drum Dimensions (Diameter × Length mm)
Ø245 × 850
Ø245 × 1,000
Ø245 × 1,100
Motor Power (kW)
2 × 3
2 × 11
2 × 15
Electrical Power Supply
380V 50Hz
380V 50Hz
380V 50Hz
Installation Dimensions (L × W × H mm)
2,900 × 870 × 350
4,100 × 1,115 × 450
4,100 × 1,115 × 480
Each brake tester model operates at a standardized detection speed of 2.5 km/h, providing consistent dynamic friction engagement across varying vehicle chassis weights. Sizing depends strictly on target axle ratings: the CTFZ-3B suits light passenger fleets, the CTFZ-10B accommodates medium commercial delivery trucks, and the CTFZ-13B supports tri-axle freight haulers and municipal transport coaches.
Understanding track width geometry is essential during bay planning. The inner wheel track dimension across all three models is fixed at 700 mm, allowing narrow passenger cars or compact utility vehicles to locate safely between roller assemblies. The maximum outer span expands to 2,400 mm on the CTFZ-3B, 2,700 mm on the CTFZ-10B, and 2,900 mm on the CTFZ-13B, accommodating wide-axle commercial transport trailers without binding.
Measurement ranges scale proportionally with drive power. The dual 3 kW motors on the CTFZ-3B capture up to 10 kN per side, while the dual 11 kW drive motors of the CTFZ-10B measure up to 30 kN. The heavy-duty CTFZ-13B utilizes dual 15 kW drive motors to measure forces up to 45 kN per side, providing the dynamic torque required to test high-capacity pneumatic commercial brakes without motor stalling.
Documented Materials, Quality Controls, Certifications and Components
Mechanical rigidity dictates the lifespan and measurement precision of any roller brake tester. The main body of the CTFZ bench is wholly welded, providing high structural strength under maximum dynamic braking torques. Because of this high structural strength, the main body does not require permanent anchor bolts to secure it to the foundation floor, simplifying bay adjustment, leveling, and shop retrofits.
Roller traction relies on a specialized industrial coating. The roller bodies are layered with high-grade surface sand applied with advanced bonding adhesives. This creates an adhesion modulus above 0.85 in both wet and dry testing conditions, preventing false slippage caused by rainwater or tire residue. The surface compound is rated for a working longevity exceeding 200,000 test cycles.
Maintaining a friction coefficient above 0.85 is critical during wet testing seasons. Road vehicles entering inspection lanes frequently deposit water, road slush, and fine grit onto the roller beds. Standard steel or inferior knurled rollers can experience substantial traction drops when wet, leading to premature wheel lock and false failure readings. The advanced adhesive sand bonding matrix retains high friction characteristics, ensuring repeatable test cycles regardless of weather conditions.
Internal drive and sensor components adhere to strict manufacturing standards:
- Drive Transmission: Mechanical speed reducers engineered using European production technology to handle sudden braking torque transfer without geartrain backlash.
- Motors and Bearings: Heavy-duty industrial electric motors paired with precision bearings sourced from recognized domestic manufacturers.
- Quality Certifications: Core production systems and component lines operate under ISO9001 international quality management certification and carry CE certification.
- Sensor Arrays: High-sensitivity load cells and dynamic force transducers calibrated for rapid data acquisition with high repetition performance.
When selecting a reliable brake tester, verifying these component certifications protects the operator against unexpected geartrain failure, electrical faults, and premature motor burnout under heavy testing loads.
Practical Sourcing and Risk-Mitigation Guidance
Procuring a dependable brake tester involves evaluating shop infrastructure, vehicle demographics, and daily throughput capacity. Procurement teams must verify electrical supply readiness: all CTFZ models demand a stable 380V, 50Hz three-phase power supply to drive dual motors ranging from 2 × 3 kW up to 2 × 15 kW. Substandard supply wiring can lead to voltage drops during peak motor draw, affecting measurement accuracy.
Civil engineering and pit planning must account for physical frame dimensions. The light-duty CTFZ-3B requires a depth allowance of 350 mm, whereas the heavy-duty CTFZ-13B needs 480 mm depth across a 4,100 mm × 1,115 mm footprint. Review wheel track widths carefully: while all models accommodate an inner rim track of 700 mm, maximum outer wheel tracks expand from 2,400 mm on passenger lines to 2,900 mm on heavy transport bays.
Facility managers evaluating a brake tester for sale should consider whether to specify an integrated axle-load cell array. While testing braking force alone satisfies basic functional checks, acquiring axle weight concurrently unlocks dynamic brake efficiency ratios (braking force divided by axle mass). This combined metric forms the baseline for statutory roadworthiness standards worldwide.
To prevent unplanned bay maintenance and premature component fatigue, facility managers should institute a structured operational checklist:
- Daily Visual Checks: Inspect roller surfaces for embedded stones, metal shavings, or grease buildup that might alter the 0.85 friction coefficient. Clear away debris from the pit floor to ensure unimpeded mechanical movement.
- Sensor Verification: Check the third-roller slip detection mechanism or software shutdown sensors for unobstructed movement and responsive motor cutoff during wheel locking events.
- Calibration Checks: Regularly verify pedal force gauge readouts and load-cell balance against baseline calibration fixtures to preserve the sub-1.5% accuracy rating of the brake tester.
- Airbag Inspection: For benches equipped with pneumatic lifters, inspect air supply pressure and bladder integrity to ensure smooth vehicle drive-over transitions without abrupt mechanical contact.
- Transmission Monitoring: Observe reducer gearboxes for smooth torque engagement, verifying that lubrication levels meet standard operational guidelines.
Proper operator training also mitigates equipment strain. Drivers should enter the roller bay centrally, positioning wheels squarely between the front and rear roller pairs. Misaligned entry can cause uneven lateral thrust against side guide rollers, creating unnecessary wear on chassis bearings.
For custom bay layouts, electrical integration reviews, or formal project proposals, contact our technical sales team for an engineering consultation.
Frequently Asked Questions
What parameters does the roller brake tester measure and calculate?
The system measures individual left and right wheel braking forces, dynamic axle load, process brake deviation, and peak brake force deviation. It automatically calculates the ratio of braking force to axle load, the ratio of handbrake force to total vehicle weight, and records pedal pressure and coordination timing when connected to a pedal force gauge.
How does the roller surface coating maintain adhesion in wet conditions?
The rollers are bonded with high-grade industrial surface sand using advanced adhesive technology. This creates a surface adhesion modulus above 0.85 under both wet and dry testing conditions, ensuring reliable tire grip and preventing premature slip during damp vehicle testing across its 200,000-cycle design life.
Why does the frame not require ground anchoring bolts?
The main chassis utilizes a wholly welded, high-strength structural design that absorbs and distributes dynamic braking torques across its own frame geometry. This allows the brake tester to be positioned, leveled, and operated without drilling into the concrete foundation for ground anchor bolts, simplifying bay retrofits.
What tire wear protection mechanisms are available on the CTFZ series?
The unit features an automatic stop device that disengages motor drive immediately when wheel slip occurs. Facilities can configure this mechanism with either an independent mechanical third-roller contact sensor or an algorithmic software-controlled shutdown system.
What are the primary power requirements for the CTFZ series?
All models across the CTFZ series operate on a 380V, 50Hz electrical power supply. Motor requirements vary by configuration: the CTFZ-3B requires 2 × 3 kW, the CTFZ-10B uses 2 × 11 kW, and the heavy-duty CTFZ-13B requires 2 × 15 kW.
Conclusion
Selecting an industrial-grade brake tester requires a clear understanding of dynamic axle limits, roller surface friction durability, and sensor integration. The Cartesykj CTFZ series delivers reliable vehicle inspection equipment engineered for high throughput, sub-1.5% measurement precision, and durable mechanical performance. Connect with our engineering department today to discuss technical configurations and review project specifications for your testing facility.
